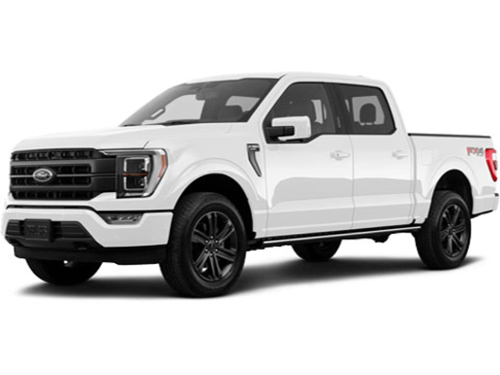

Ford F-150

GVM Upgrades

FORD F-150 (2021 on) – LWB & SWB

ALL DOBINSONS GVM UPGRADE KITS FOR FORD F-150 PROVIDE A GVM INCREASE TO 3950KGS

GVM increase to 3950kgs

Pre-Registration

Post-Registration*

Coil Spring Options

50 mm Lift - 0-70 kg
50 mm Lift - 80-130 kg (IMS Kit Only)

Leaf Spring Options

30 mm Lift - 200-300 kg Constant Load (Touring option)
30 mm Lift – 500-700 kg Constant Load

Shock Absorber Options

IMS
MRR

Find a GVM Fitter

Kit Contains:

2 x Front Coil Springs
2 x Front Shock Absorbers
2 x Rear Leaf Springs
2 x Rear Shock Absorbers
2 x Rear Shackle Kit
1 x Rear Shackle Bush Kit
4 x Rear U-Bolt Kit
2 x Rear Shackle Pins

$5915

Read more
$7995

Read more

SUPPLIED & INSTALLED!
*Further charges for state based engineering may apply

DOBINSONS GVM UPGRADES ARE FEDERALLY APPROVED, AND THE REVISED GVM WILL BE COMPLIANT AUSTRALIA WIDE!

Authorised Fitters

FIND A STOCKIST

Find your nearest store for expert assistance and advice.

Read more
CATALOGUES

Looking for a specific part, browse our catalogues.

Read more
CONTACT US

Can't find what you're looking for?
Contact us today.

Read more

SHOCK ABSORBERS

Each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs.

Continue reading

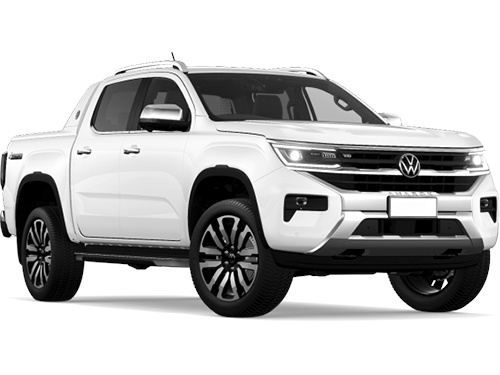

Volkswagen Amarok NF

GVM Upgrades

VOLKSWAGEN AMAROK NF

ALL DOBINSONS GVM UPGRADE KITS FOR VOLKSWAGEN AMAROK NF PROVIDE A GVM INCREASE TO 3790KGS ‡^#

GVM increase to 3790KGS ‡^#

Pre-Registration

Post-Registration*

‡Platinum and variants with 20 inch wheels upgraded to 3750 kg
^#Disc Brake models ONLY

Coil Spring Options

No Load
45 mm Lift - 40-70 kg
45 mm Lift - 70-100 kg

Leaf Spring Options

40 mm Lift - 280 kg Constant Load (Touring Option)
40 mm Lift - 500 kg Constant Load

Shock Absorber Options

Twin Tube Nitro-Gas
IMS
MRR

Find a GVM Fitter

Kit Contains:

2 x Front Coil Springs
2 x Front Shock Absorbers
2 x Rear Leaf Springs
2 x Rear Shock Absorbers
4 x Rear U-Bolts
2 x Rear Shackles
1 x Rear Shackle Bush Kit
2 x Rear Shackle Pins
1 x Rear Brakeline Extension Kit
2 x Left & Right Side Indicator (CAT 6)

$4650

Read more
$5165

Read more
$6405

Read more

SUPPLIED & INSTALLED!
*Further charges for state based engineering may apply

DOBINSONS GVM UPGRADES ARE FEDERALLY APPROVED, AND THE REVISED GVM WILL BE COMPLIANT AUSTRALIA WIDE!

Authorised Fitters

FIND A STOCKIST

Find your nearest store for expert assistance and advice.

Read more
CATALOGUES

Looking for a specific part, browse our catalogues.

Read more
CONTACT US

Can't find what you're looking for?
Contact us today.

Read more

SHOCK ABSORBERS

Each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs.

Continue reading

GVM Upgrades

GVM Upgrades

If your vehicle carries a lot of weight for a living, or you are setting up for a big lap of Aus, chances are you are over your Gross Vehicle Mass (GVM) and you don’t even know it.

Common accessories and touring gear all add up easily, so don’t get caught out being overloaded.

FORD F-150

GVM INCREASE TO 3950KGS

FORD RANGER PX2

GVM INCREASE TO 3500KGS

FORD RANGER PX3

GVM INCREASE TO 3500KGS

FORD RANGER
NEXT GEN

GVM INCREASE TO 3790KGS

NOW SUITS ALL 4X4 VARIANTS!

ISUZU D-MAX

GVM INCREASE TO 3600KGS

MAZDA BT-50

GVM INCREASE TO 3600KGS

TOYOTA HILUX
8TH GEN

GVM INCREASE TO 3500KGS

TOYOTA LANDCRUISER
VDJ76 / GDJ76

GVM INCREASE TO 3700KGS

TOYOTA LANDCRUISER
VDJ78 / GDJ78

GVM INCREASE TO 3900KGS

TOYOTA LANDCRUISER
VDJ78 / GDJ78

GVM INCREASE TO 4040KGS

TOYOTA LANDCRUISER
VDJ79 / GDJ79

GVM INCREASE TO 3900KGS

TOYOTA LANDCRUISER
VDJ79 / GDJ79

GVM INCREASE TO 4040KGS

TOYOTA LANDCRUISER
200 SERIES

GVM INCREASE TO 3800KGS

TOYOTA LANDCRUISER
300 SERIES

GVM INCREASE TO 3990KGS

VOLKSWAGEN
AMAROK NF

GVM INCREASE TO 3790KGS

Find a GVM Fitter

FAQs

What is a GVM upgrade?

A Dobinsons GVM upgrade enhances your vehicle's legal weight-carrying capacity through the expert installation of a specially designed Dobinsons suspension kit. This kit, rigorously tested and approved in Australia by the Department of Infrastructure, replaces the factory springs, shock absorbers, and other standard suspension components. Additionally, tyre upgrades may be necessary.

Unlike a standard aftermarket suspension kit, the Dobinsons GVM upgrade not only raises your vehicle's ride height from its original factory setting but also significantly boosts its payload capacity. This results in improved handling and stability, contributing to a safer driving experience.
Why would you need a GVM upgrade?

If you frequently transport loads near your vehicle's factory Gross Vehicle Mass (GVM), a Dobinsons GVM upgrade might be necessary. Surpassing the payload limit set by your vehicle's manufacturer renders your vehicle unroadworthy.

Regulatory authorities actively issue fines and can mandate the removal of overloaded vehicles from the road. Moreover, should your vehicle be involved in an accident while exceeding its payload capacity, there's a risk that your insurance policy could be invalidated.
Pre-registration GVM upgrades

If you've recently signed a sales contract or are planning to do so, opting for a pre-registration upgrade is a more advantageous choice. With this option, your vehicle will be delivered already equipped with the GVM upgrade, fulfilling all compliance requirements right from the beginning.

This approach not only offers an increased GVM from the outset but is also more cost-effective. The engineering and testing involved have already been provided to the Department of Infrastructure during the initial approval process. As a result, your vehicle will be recognized by the Register of Approved Vehicles (RAV), ensuring its validity across all states and territories for the vehicle's lifespan.
Post-registration GVM upgrades

If your vehicle is already registered, a post-registration GVM upgrade is a feasible option. Accessories can significantly increase a vehicle's weight, making a Dobinsons GVM upgrade essential for vehicles in service. This process is somewhat more intricate as the regulations vary across different states and territories. It requires the involvement of an approved signatory who is responsible for endorsing the upgrade and providing the necessary documentation to the respective state or territory road authorities. This step incurs additional costs for the end user and adds complexity to the process.

Your nearest authorized Dobinsons GVM installer will typically have a designated signatory they collaborate with. While an in-service (post-registration) GVM upgrade is recognized in all states and territories, it's important to note that if you relocate interstate or sell your vehicle to someone in a different state or territory, the vehicle will need to undergo re-certification in that new location, which may entail further costs.
GCM Upgrades

Currently, the Department of Infrastructure and Transport does not endorse or approve upgrades to the Gross Combination Mass (GCM). Similarly, Dobinsons Spring & Suspension also does not endorse or approve any GCM upgrades that are specific to individual states.
Terminology

Tare Weight - This is the vehicles weight with fluids and 10 liters of fuel.

Kerb Weight - Weight of the vehicle with full fuel tank, an average driver of 68 kilos and 7kg of luggage.

GVM - Gross Vehicle Mass is the maximum allowable weight. Inclusive of all occupants. Accessories, luggage and tow ball mass.

GCM - Gross Combination Mass is the total combined weight of your vehicle, tow ball mass and trailer.

Axle Load - In addition to GVM, vehicle have a maximum allowable load on both the front and rear axles.

ATM - Aggregate Trailer Mass is the maximum allowable weight of the trailer as designated by the manufacturer.

TBM - Tow Ball Mass is the weight on the tow ball by the trailer.

Tyre Load & Speed Rating - This can be found on the sidewall of your tyre and indicates maximum load and maximum speed the tyre is capable of.

DOBINSONS GVM UPGRADES ARE FEDERALLY APPROVED, AND THE REVISED GVM WILL BE COMPLIANT AUSTRALIA WIDE!
