Winches
& Accessories

Steel & Synthetic Rope Winches

Whether you require the flexibility of synthetic rope winches or prefer the traditional steel cable winches, Dobinsons has it.
Match your winch with our winch accessories and you’ll be ready for action!

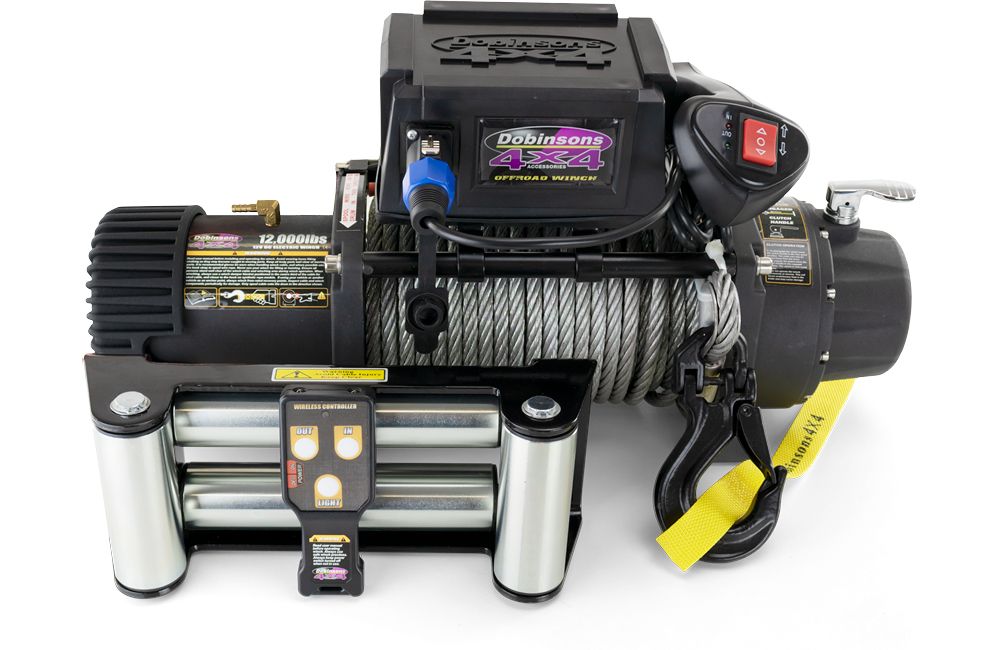

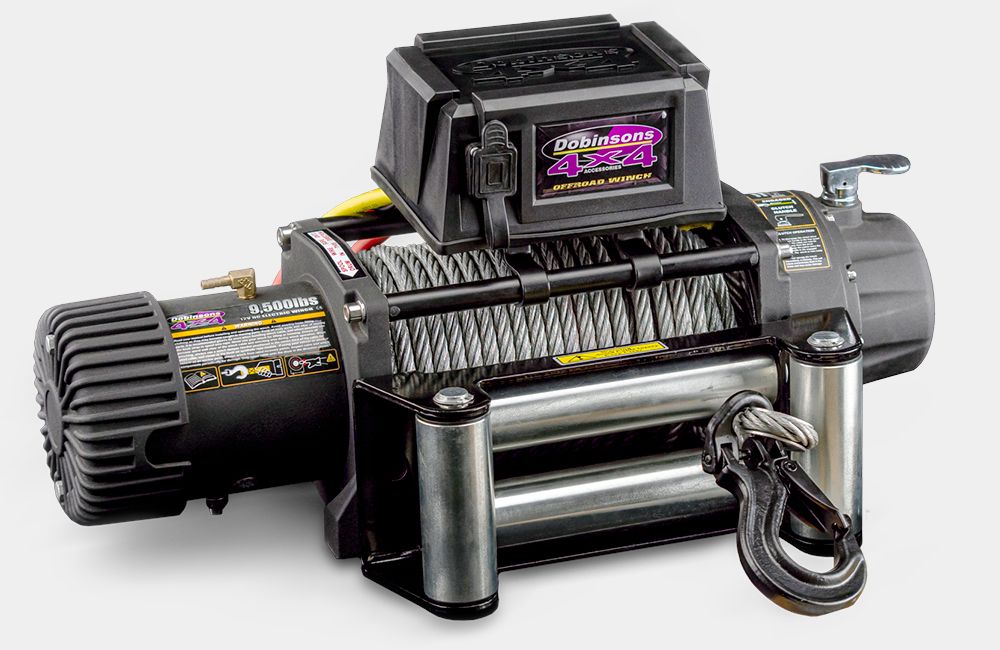

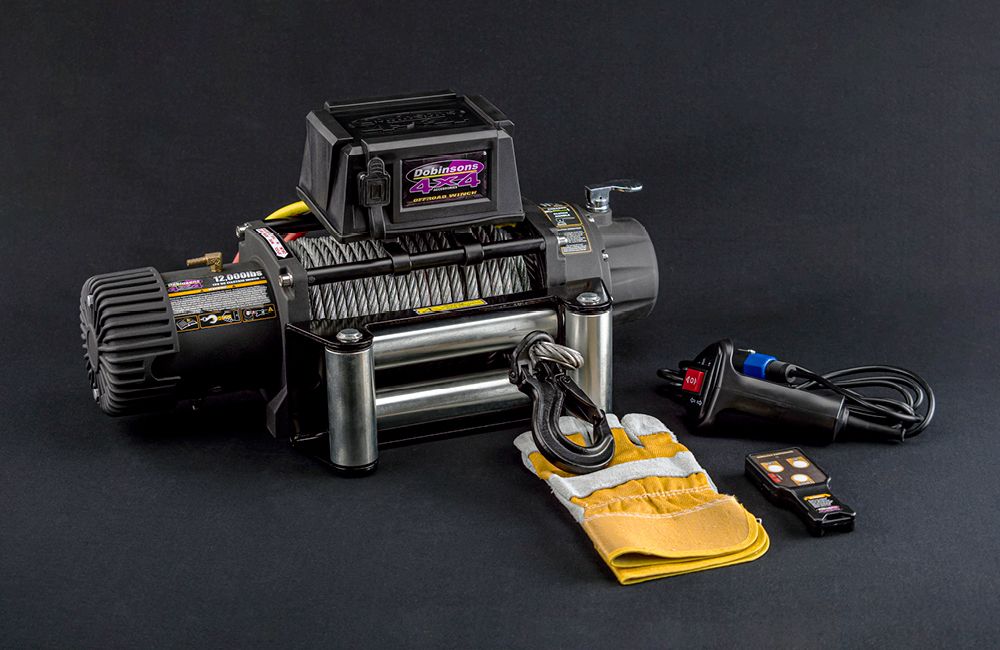

Steel Cable Winches

Dobinsons Heavy Duty Steel Cable Winches provide features such as wireless controls, sealed breathable housings, high horsepower motors and quick-flip clutch handles with the strength and simplicity of steel cable.

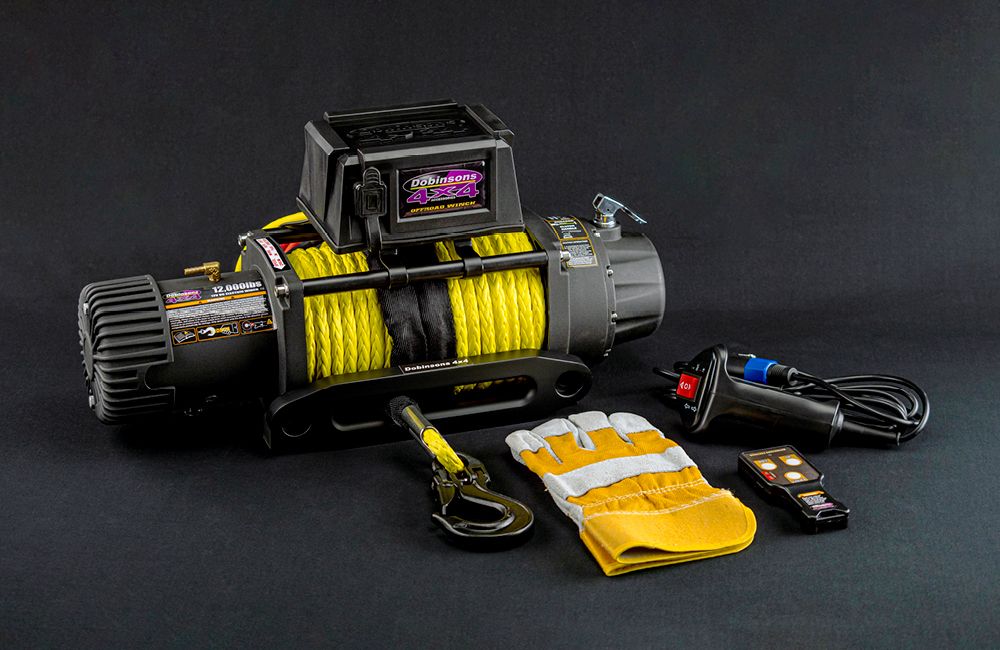

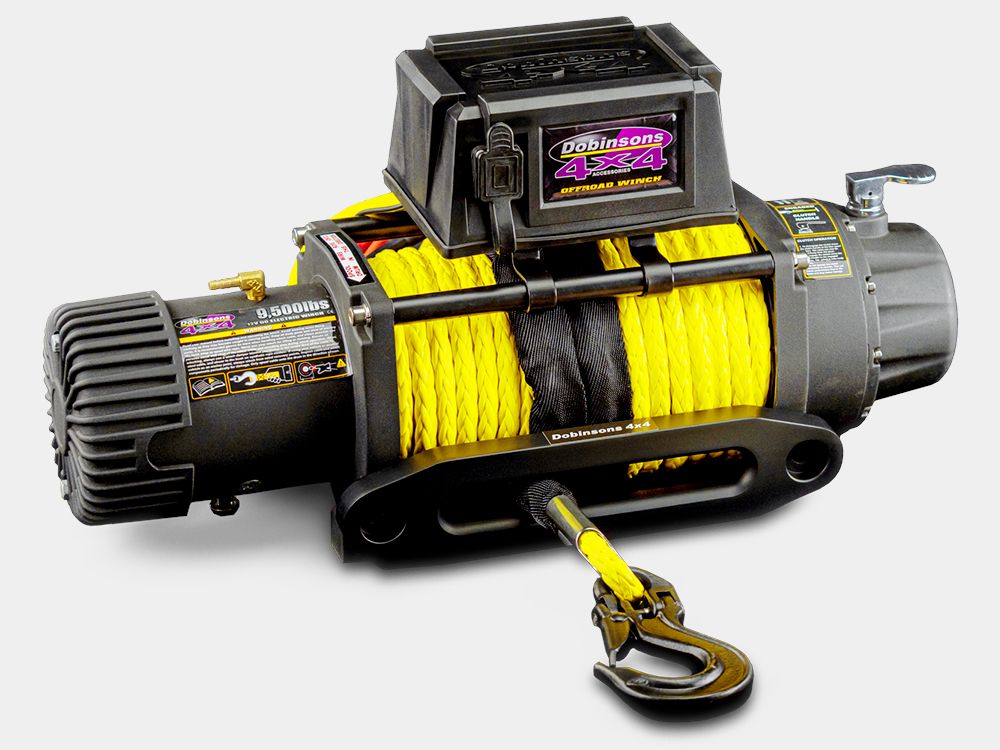

Synthetic Rope Winches

Dobinsons Heavy Duty Synthetic Rope Winches provide features such as wireless controls, sealed breathable housings, high horsepower motors and quick-flip clutch handles with the lightweight benefits of extra strong synthetic rope.

12 Volt Series Would Motor

MORE POWERFUL

Improved 12 volt series wound motor provides increased power and winching efficiency.
Wireless Casing

WIRELESS CASING

Redesigned wireless controller provides a wireless range of up to 30 metres and incorporates dual LED lights.
Housing Breather

HOUSING BREATHER

Each winch is equipped with a motor housing breather, 2 metre nylon air hose and filter for increased water protection.
Multiple Controlers

MULTIPLE CONTROLLERS

Hand Held Control and Wireless Remote
Winch Features
Redesigned Clutch Handle

REDESIGNED CLUTCH HANDLE

Our new quick-flip style clutch handle allows much easier clutch operation and reduces the winches overall height.
Improved Casings

IMPROVED CASINGS

Strengthened single piece gearbox casing is now much smaller, stronger and also includes 304 grade stainless steel cross rods.
Sealed Solenoid

SEALED SOLENOID

Improved single fully sealed solenoid for extreme durability, housed in a new heavy duty control box.
3 Stage Planetary Gears

GEARING

3 Stage Planetary Gears
  • Steel Cable or Synthetic Rope Option Available in Both Sizes
  • Heavy Duty Gloves
  • Plug In Control Range of up to 3 Metres
  • Control Box Mounting Brackets: Control Box to Cross Rods, Motor Housing & Flat Surfaces/Bartops
  • Rotating Ring Gear Clutch
  • 64 x 224mm Drum
  • Automatic Braking Action
Steel Rope Winch Specifications

9,500Lbs Steel Cable
12,000Lbs Steel Cable
Weight:
35Kg
36Kg
Gear Reduction:
172.8:1
216:1
Motor:
4.2kw/5.6hp Series Wound
4.8kw/6.5hp Series Wound
Fairlead:
4-Way Roller Fairlead
4-Way Roller Fairlead
Cable:
9.5mm x 28m (3/8” x 92ft)
Steel Cable
9.5mm x 28m (3/8” x 92ft)
Steel Cable
Overall Dimensions:
160mm (W) x 210mm (H) x 545mm (L)
160mm (W) x 210mm (H) x 545mm (L)
Mounting Dimensions:
254mm x 114.3mm
254mm x 114.3mm

9,500Lbs Synthetic Rope
12,000Lbs Synthetic Rope
Weight:
25Kg
26Kg
Gear Reduction:
172.8:1
216:1
Motor:
4.2kw/5.6hp Series Wound
4.8kw/6.5hp Series Wound
Fairlead:
Alloy Hawse Fairlead
Alloy Hawse Fairlead
Cable:
9.5mm x 28m (3/8” x 92ft)
Synthetic Rope
9.5mm x 28m (3/8” x 92ft)
Synthetic Rope
Overall Dimensions:
160mm (W) x 210mm (H) x 545mm (L)
160mm (W) x 210mm (H) x 545mm (L)
Mounting Dimensions:
254mm x 114.3mm
254mm x 114.3mm
Synthetic Rope Winch Specifications

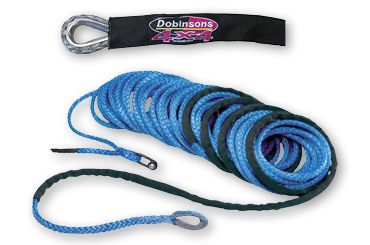

Synthetic Rope
High Grade Dyneema SK75
Ultra Light to Reduce Front Axle Weight
Includes Rope Protector
Stronger than Steel Cable
Requires Part EW80-3823 for Use
14,200lb (30m x 10mm)
18,000lb (30m x 11mm)

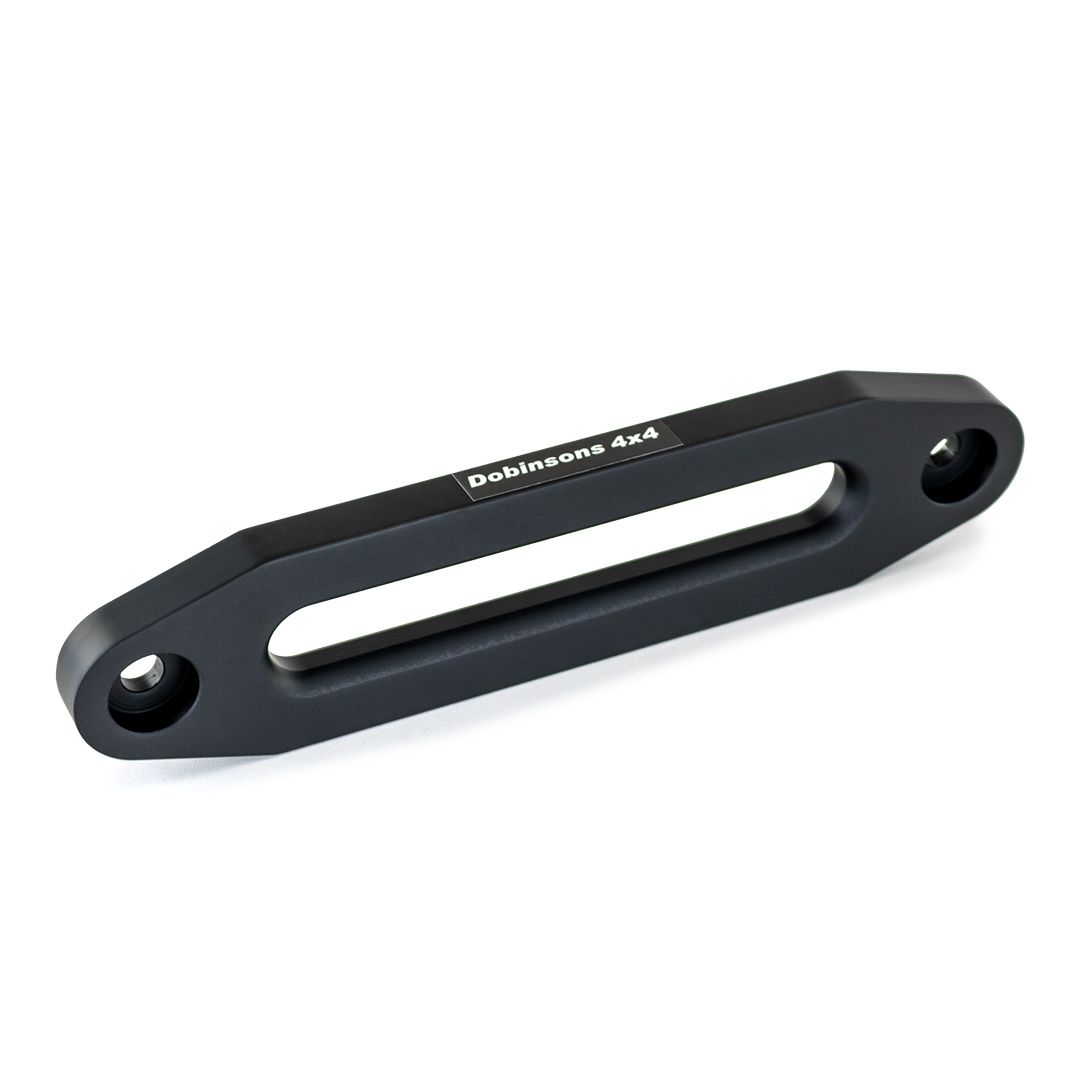

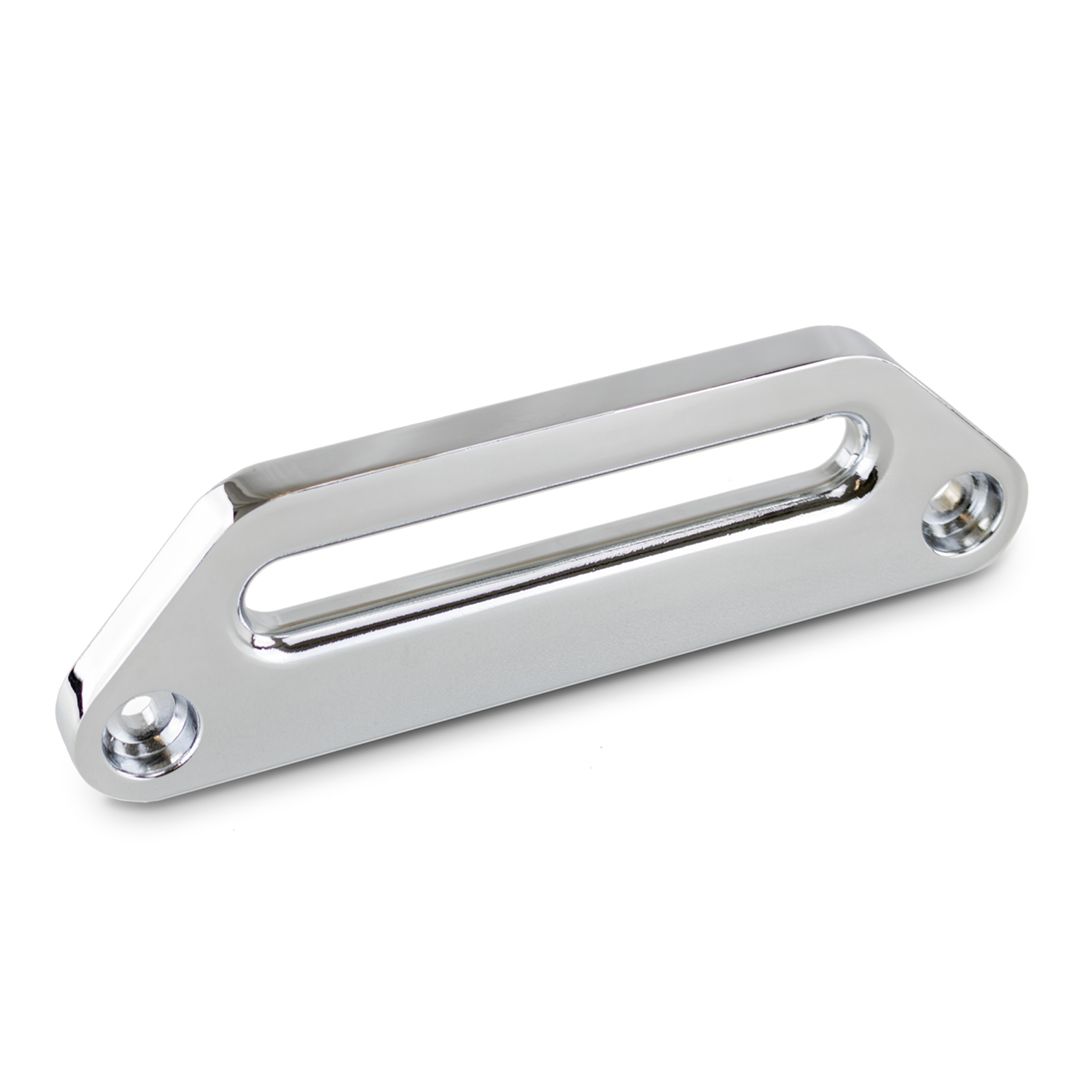

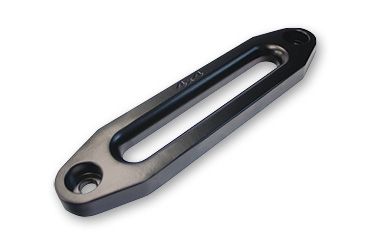

Aluminium Fairlead
Compatible with Most Bullbars
Manufactured from Precision Formed Aluminium
Required for Use with Synthetic Rope
Assists in Preventing Pinching, Kinks and Frays
Normally Associated with Guiding Rope
Winch Hook
Required for Use with Synthetic Rope
Damper Blanket
Compatible with Most Bullbars
Manufactured from Precision Formed Aluminium
Required for Use with Synthetic Rope
Assists in Preventing Pinching, Kinks and Frays
Normally Associated with Guiding Rope
