Suitable For

Type:

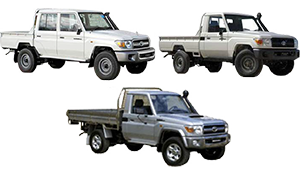

Landcruiser

Model:

70 Series (09/1999 on)

Variant:

79 Series - 2" Lift - (FZJ79, HZJ79, HDJ79, VDJ79, GRJ79)

Detail:

Pickup, 4.5L Turbo Diesel Pickup/Dual Cab,
Front Coil Spring Suspension

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Standard Height
Up to 50Kg

Part Number

C59-250

Linear Rate
Raised Height (35mm Lift)
Extra Heavy Duty
70-100Kg

Part Number

C59-252

Linear Rate
Raised Height (45mm Lift)
Up to 40Kg

Part Number

C59-248

Linear Rate
Raised Height (45mm Lift)
60-100Kg

Part Number

C59-236

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-114

IFP Monotube Shock (IMS)

Part Number

IMS45-60114

Monotube Remote Reservoir

Part Number

MR45-60114

Monotube Remote Reservoir
(3-Way Adjustable)
(Universal Reservoir Mounts Included)

Part Number

MRA45-A114

Reservoir Mounting Bracket RM59-041 Recommended For Optimal Fitment

Shock Absorber Reservoir Mounting

Reservoir Mounting Bracket Kit

Part Number

RM59-041

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Steering Damper

FZJ79, HZJ79 (to 04/2007)

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-824

Adjustable Performance Remote Reservoir Damper

Part Number

SS59A824

FZJ79, HZJ79, VDJ79 (04/2007 on)

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-825

Castor Kit

Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0° or ±2.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2°
4 x Rubber Eccentric Bushes

Part Number

RB59-548K

Radius Arm Bush

0 Degree Standard Radius Arm Bush Kit
Arm to Diff
4 x Rubber Bushes

Part Number

RB59-536K

Arm to Chassis Bush Kit
2 x Rubber Bushes

Part Number

RB59-534K

ABS Cable Bracket Kit

Part Number

WA59-544K

Must Be Fitted To Vehicles With ABS Brakes

Panhard Rod

Right Hand Drive V8 Dual Cab & Single Cab 07-08/16

Panhard Rod Lengths Vary Between V8 Models.
Confirm Length Below When Ordering

Genuine Panhard Rod
Approx 940mm Long Centre of Bush to Centre of Bush
(Complete with Bushes)

Part Number

PR59-1418

Right Hand Drive 6 Cyl & Single Cab V8 09/16 on

Genuine Panhard Rod
Approx 810mm Long Centre of Bush to Centre of Bush
(Complete with Bushes)

Part Number

PR59-1420

Sway Bar

Heavy Duty
Rate Increased 28%
33mm Bar

Part Number

SB59-1930

Sway Bar Extension

Adjustable Sway Bar Extension
(Suits 2" to 4" Lift)

Part Number

WA59-543K

Must Be Fitted For Tail-Shaft/Swaybar Clearance

Coil Spacer

10mm

Part Number

PS21-4008

30mm

Part Number

PS21-4009

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes

Kit Contains:
2 x Front Panhard Rod Bush
2 x Front Leading Arm to Diff Bush
4 x Front Leading Arm to Chassis Bush

Part Number

PB59-1261K

Rear

Leaf Spring

It is a Requirement that the Brake Adjuster BA59-001 be Fitted When Using These Leaf Springs

6 + 2 Leaves
Raised Height (45mm Lift)
Comfort Spring
No Load

Part Number

TOY-078-R

6 + 2 Leaves
Raised Height (50mm Lift)
Standard Duty
Up to 100Kg Constant Load

Part Number

TOY-082-R

7 + 2 Leaves
Raised Height (50mm Lift)
Heavy Duty
300Kg Constant Load

Part Number

TOY-083-R

8 + 2 Leaves
Raised Height (50mm Lift)
Super Heavy Duty
500Kg Constant Load

Part Number

TOY-084-R

9 + 2 Leaves
Raised Height (50mm Lift)
Super Heavy Duty
800Kg Constant Load

Part Number

TOY-085-R

8 + 3 Leaves
Raised Height (50mm Lift)
Super Heavy Duty
1200Kg Constant Load

Part Number

TOY-088-R

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
(Big Bore)
Not for Loaded Vehicles

Part Number

GS45-115

Twin Tube Nitro-Gas
Standard Height
(Big Bore)

Part Number

GS59-079

Twin Tube Nitro-Gas
Long Travel
(Big Bore)

Part Number

GS59-703

IFP Monotube Shock (IMS)

Part Number

IMS45-60115

Monotube Remote Reservoir

Part Number

MR45-60115

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A115T

Includes Piggy Back Mounts (RM66-040)

Universal Reservoir Mount Bracket (RM80-005) May Be Required If Standard Mounts Do Not Work (Sold Separately)

Spring & Shackle Bush Kit

to 07/2009

Kit Contains:
4 x PB59-1538 (F, R)
4 x PB59-1509 (C)

Part Number

PB59-1089K

08/2009 on (Air Bag Dash)

Kit Contains:
8 x PB59-1537 (F, R)
4 x PB59-1536 (C)

Part Number

PB59-1100K

U-Bolt Kit

Suits TOY-078-R & O.E. Spring with 2 Leaf 2nd Stage
Kit Contains:
2 x UB59-453-1

Part Number

UB59-453-1K

Suits TOY-082-R
Kit Contains:
2 x UB59-453-1

Part Number

UB59-453-1K

Suits TOY-083-R & O.E. Spring with 3 Leaf 2nd Stage
Kit Contains:
2 x UB59-416

Part Number

UB59-416K

Suits TOY-084-R
Kit Contains:
2 x UB59-416

Part Number

UB59-416K

Suits TOY-085-R
Kit Contains:
2 x UB59-914

Part Number

UB59-914K

Suits TOY-088-R
Kit Contains:
2 x UB59-914

Part Number

UB59-914K

Shackle Kit

to 07/2009

Greasable: Fit in Pairs

Part Number

SK59-043

08/2009 on (Air Bag Dash)

Greasable: Fit in Pairs

Part Number

SK59-051

Shackle Pin

to 07/2009

Greasable: Fit in Pairs

Part Number

SP59-044

08/2009 on (Air Bag Dash)

Greasable: Fit in Pairs

Part Number

SP59-057

Sway Bar

Heavy Duty
Rate Increased 107%
33mm Bar

Part Number

SB59-1931

Brake Adjuster

Recommended when Raising Vehicle
(Suits 2" to 3" Lift)

Part Number

BA59-001
