Suitable For

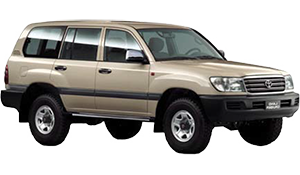

A vehicle image representing the page's contents

Type:

Landcruiser

Model:

100 Series (1998 to 11/2007)

Variant:

100 Series - (HDJ100, HZJ100, UZJ100 - Torsion Bar Independent Front Suspension)

Detail:

Petrol & Diesel,
Independent Front Suspension

Download Catalogue Page

This vehicle may be fitted with a Hydraulic Ride System.
To convert this system to a conventional suspension system, a COMPLETE KIT must be fitted.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Torsion Bar

V8 Petrol

Heavy Duty
Rate Increased
Length 1160mm

Part Number

TB59-1600

Availability

Check Length Before Ordering

Diesel/Turbo Diesel/6 Cyl. Petrol

Heavy Duty
Rate Increased
Length 1210mm

Part Number

TB59-1610

Availability

Check Length Before Ordering

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-782

Availability

IFP Monotube Shock (IMS)

Part Number

IMS59-60782

Availability

IFP Monotube Shock (IMS)
(Long Travel)

Part Number

IMS59-60786

Availability

IMS59-60786 Requires DD59-532K & UCA59-006

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A782

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
(Long Travel)

Part Number

MRA59-A786

Availability

MRA59-A786 Requires DD59-532K & UCA59-006

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-006K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Diff Drop Kit

Part Number

DD59-532K

Availability

Recommended When Lifting Above 50mm to Improve CV Angle and Wear

Rear

Coil Spring

Linear Rate
Standard Height (10mm Lift)

Part Number

C59-169

Availability

Linear Rate
Raised Height (30mm Lift)
Up to 100Kg Constant Load
(Recommended)

Part Number

C59-167

Availability

Linear Rate
Raised Height (30mm Lift)
200Kg Constant Load

Part Number

C59-185

Availability

Linear Rate
Raised Height (30mm Lift)
400Kg Constant Load

Part Number

C59-171

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-682

Availability

IFP Monotube Shock (IMS)

Part Number

IMS59-60682

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A682

Availability

Control Arm

Upper Control Arm

Adjustable Upper Control Arms (Pair)
Heavy Duty 30mm OD

Part Number

WA59-555K

Availability

Lower Control Arm

Adjustable Lower Control Arms (Pair)
40mm OD
6mm Wall

Part Number

WA59-551K

Availability

Coil Spacer

10mm

Part Number

PS59-4005

Availability

15mm

Part Number

PS59-4006

Availability

30mm

Part Number

PS59-4007

Availability

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes

Kit Contains:
2 x Panhard Rod Bush
4 x Rear Upper Control Arm Bush
4 x Rear Lower Control Arm Bush

Part Number

PB59-1259K

Availability
