Suitable For

Type:

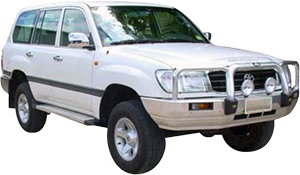

Landcruiser

Model:

105 Series (04/1998 to 11/2007)

Variant:

105 Series - 0"-2" Lift - (FZJ105R, HZJ105R - Coil Spring Front Suspension)

Detail:

Wagon GX, GXL,
Coil Spring Suspension

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Standard Height

Part Number

C59-174

Linear Rate
Raised Height (40mm Lift)
Comfort Spring
Petrol Only
Up to 50Kg

Part Number

C59-234

Linear Rate
Raised Height (45mm Lift)
Up to 50Kg
(Recommended)

Part Number

C59-168

Linear Rate
Raised Height (45mm Lift)
60-100Kg

Part Number

C59-166

*Linear Rate
Raised Height (60mm Lift)

Part Number

C59-166

* Swaybar Extensions & Panhard Rods Recommended

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-683

IFP Monotube Shock (IMS)

Part Number

IMS59-60683

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A683

Bump Stop

Hydraulic Bump Stop

Replaces OEM Inner Coil Bump Stops For Smoother Bottom Out And Reduced Bucking

Height Adjustable - Can Be Used As Bump Stop Extension Kit

Threaded Body
56mm Diameter
46mm Travel
(0"-4" Shocks)

Part Number

HBS56-009

Threaded Body
56mm Diameter
50mm Travel
(5"+ Shocks)

Part Number

HBS56-006

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-012FK

Steering Damper

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-824

Adjustable Performance Remote Reservoir Damper

Part Number

SS59A824

Castor Kit

Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0°or ±2.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-548K

Radius Arm Bush

0 Degree Standard Radius Arm Bush Kit
Arm to Diff
4 x Rubber Bushes

Part Number

RB59-536K

Arm to Chassis Bush Kit
2 x Rubber Bushes

Part Number

RB59-534K

Panhard Rod

Adjustable Panhard Rod
Right Hand Drive

Part Number

PR59-1404

Adjustable Panhard Rod
Left Hand Drive

Part Number

PR59-1408

Coil Spacer

5mm

Part Number

PS59-4001

10mm

Part Number

PS59-4002

20mm

Part Number

PS59-4003

30mm

Part Number

PS59-4004

Under Body Bush Kit

SEE REAR UNDER BODY BUSH KIT

Rear

Coil Spring

Linear Rate
Standard Height

Part Number

C59-243

Variable Rate
Raised Height (45mm Lift)
Comfort Spring - Petrol Only
No Load

Part Number

C59-269V

Linear Rate
Raised Height (45mm Lift)
No Load
(Recommended)

Part Number

C59-169

Linear Rate
Raised Height (45mm Lift)
60-100Kg Constant Load

Part Number

C59-167

Linear Rate
Raised Height (50mm Lift)
200-350Kg Constant Load

Part Number

C59-171

*Linear Height
Raised Height (60mm Lift)
No Load

Part Number

C59-167

* Swaybar Extensions & Panhard Rods Recommended

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-682

IFP Monotube Shock (IMS)

Part Number

IMS59-60682

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A682

Bump Stop

Hydraulic Bump Stop

Replaces OEM Inner Coil Bump Stops For Smoother Bottom Out And Reduced Bucking

Height Adjustable - Can Be Used As Bump Stop Extension Kit

May Require Extra Bump Stop Extensions For Rubber Outer Bump Stops

Threaded Body
56mm Diameter
46mm Travel
(0"-4" Shocks)

Part Number

HBS56-009

Threaded Body
56mm Diameter
50mm Travel
(5"+ Shocks)

Part Number

HBS56-006

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-019FK

Brake Adjuster

Recommended when Raising Vehicle
(Suits 2" to 6" Lift)

Part Number

BA45-005

Panhard Rod

Adjustable Panhard Rod
(Complete with Bushes)

Part Number

PR59-1405

Alignment Part

* Check Sway Bar Link Configuration - 80 Series Require Either SE59‑517 or SE59‑519.
All 105 Series Require SE59‑519

Sway Bar Extension
(Suits 3" to 6" Lift)
Side of Chassis Mount*

Part Number

SE59-517

Sway Bar Extension
(Suits 3" to 6" Lift)
Bottom of Chassis Mount*

Part Number

SE59-519

Coil Spacer

10mm

Part Number

PS59-4005

15mm

Part Number

PS59-4006

30mm

Part Number

PS59-4007

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes

Kit Contains:
2 x Front Radius Arm to Chassis Bush
4 x Front Leading Arm Bush
2 x Front Panhard Rod Bush
4 x Rear Upper Control Arm Bush
4 x Rear Lower Control Arm Bush
2 x Rear Panhard Rod Bush

Part Number

PB59-1258K
