Suitable For

Type:

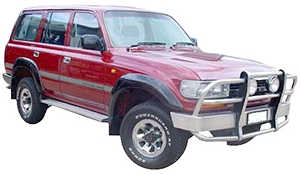

Landcruiser

Model:

80 Series (05/1990 to 08/1991)

Variant:

FJ80, HZJ80 , HDJ80 - THIS IS UNPUBLISHED

Detail:

Wagon (Confirm Build Date)

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Standard Height

Part Number

C59-168

Linear Rate
Raised Height (45mm Lift)
Up to 50Kg
(Recommended)

Part Number

C59-166

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
80-100Kg

Part Number

C59-170

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-683

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A683

Shock Absorber Reservoir Mounting

Reservoir Mounting Bracket Kit

Part Number

RM59-030

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Steering Damper

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-824

Adjustable Performance Remote Reservoir Damper

Part Number

SS59A824

Castor Kit

Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0°, ±2.5° or
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-548K

Radius Arm Bush

0 Degree Standard Radius Arm Bush Kit
Arm to Diff
4 x Rubber Bushes

Part Number

RB59-536K

Arm to Chassis Bush Kit
2 x Rubber Bushes

Part Number

RB59-534K

Coil Spacer

5mm

Part Number

PS59-4001

10mm

Part Number

PS59-4002

20mm

Part Number

PS59-4003

30mm

Part Number

PS59-4004

Under Body Bush Kit

SEE REAR UNDER BODY BUSH KIT

Rear

Coil Spring

Linear Rate
Standard Height

Part Number

C59-169

Linear Rate
Raised Height (45mm Lift)
Up to 100Kg Constant Load
Recommended

Part Number

C59-167

Variable Rate
Raised Height (45mm Lift)
Up to 100Kg Constant Load

Part Number

C59-175V

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
350Kg Constant Load

Part Number

C59-171

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-682

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A682

Bump Stop

Hydraulic Bump Stop

Replaces OEM Inner Coil Bump Stops For Smoother Bottom Out And Reduced Bucking

Height Adjustable - Can Be Used As Bump Stop Extension Kit

May Require Extra Bump Stop Extensions For Rubber Outer Bump Stops

Threaded Body
56mm Diameter
46mm Travel
(0"-4" Shocks)

Part Number

HBS56-009

Threaded Body
56mm Diameter
50mm Travel
(5"+ Shocks)

Part Number

HBS56-006

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-019FK

Brake Adjuster

Recommended when Raising Vehicle
(Suits 2" to 3" Lift)

Part Number

BA45-005

Coil Spacer

30mm

Part Number

PS59-4007

10mm

Part Number

PS59-4005

15mm

Part Number

PS59-4006

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes

Kit Contains:
2 x Front Radius Arm to Chassis Bush
4 x Front Leading Arm Bush
2 x Front Panhard Rod Bush
4 x Rear Upper Control Arm Bush
4 x Rear Lower Control Arm Bush
2 x Rear Panhard Rod Bush

Part Number

PB59-1258K
