Suitable For

Type:

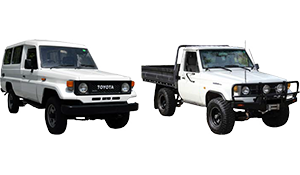

Landcruiser

Model:

70 Series (1990 to 09/1999)

Variant:

75 Series - (FZJ75, HZJ75 - Disc Brake Rear End)

Detail:

Pickup, Troop Carrier - Disc Brake Rear End,
For Model with Rear Drum Brake (Pre 10/1991) use Rear Spring Part Number HJ75-6+2-R

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Leaf Spring

7 Leaves
Raised Height (45mm Lift)

Part Number

HZJ75-7L-F

8 Leaves
Raised Height (50mm Lift)
Heavy Duty
0-40Kg
(Recommended)

Part Number

HZJ75-8L-F

8 Leaves
Raised Height (50mm Lift)
Heavy Duty
50-100Kg

Part Number

HJ75-8L-F

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-637

Spring & Shackle Bush Kit

Kit Contains:
12 x PB59-1517 (F, R, C)

Part Number

PB59-1019K

U-Bolt Kit

Kit Contains:
2 x UB59-668K

Part Number

UB59-668K

Shackle Kit

Right Hand Side
Greasable: Fit Right & Left as Pair
(AntiReverse)

Part Number

SK59-048

Left Hand Side
Greasable: Fit Right & Left as Pair
(AntiReverse)

Part Number

SK59-047

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-007

Steering Damper

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-824

Adjustable Performance Remote Reservoir Damper

Part Number

SS59A824

Rear

Leaf Spring

It Is A Requirement That The Brake Adjuster BA59-001 Be Fitted When Using These Leaf Springs

6 + 2 Leaves
Raised Height (50mm Lift)
Up to 100Kg Constant Load

Part Number

HZJ75-6+2-R

7 + 2 Leaves
Raised Height (50mm Lift)
Heavy Duty
300Kg Constant Load

Part Number

HZJ75-7+2-R

8 + 2 Leaves
Raised Height (50mm Lift)
Super Heavy Duy
500Kg Constant Load

Part Number

HZJ75-8+2-R

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
(Big Bore)
Not for Loaded Vehicles

Part Number

GS45-115

Twin Tube Nitro-Gas
Standard Height
(Big Bore)

Part Number

GS59-079

Twin Tube Nitro-Gas
Long Travel
(Big Bore)

Part Number

GS59-703

Spring & Shackle Bush Kit

Kit Contains:
12 x PB59-1518 (F, R, C)

Part Number

PB59-1020K

U-Bolt Kit

Kit Contains:
2 x UB59-453-1

Part Number

UB59-453-1K

Shackle Kit

Right Hand Side
Greasable: Fit Right & Left as Pair
(AntiReverse)

Part Number

SK59-048

Left Hand Side
Greasable: Fit Right & Left as Pair
(AntiReverse)

Part Number

SK59-047

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-023

Brake Adjuster

Recommended when Raising Vehicle

Part Number

BA59-001
