Suitable For

Type:

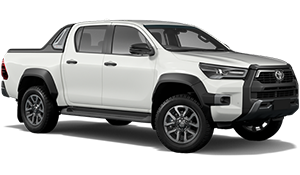

Hilux

Model:

Rogue - N80 (2022 on), GR Sport Wide Track (2022 on)

Variant:

0"-2" Lift

Detail:

4x4 Wide Track Models With Rear Shock On Outside Of Chassis Only

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Raised Height (45mm Lift)
Comfort Option
Up to 40Kg

Part Number

C59-302

Linear Rate
Raised Height (45mm Lift)
Heavy Duty
60-90Kg

Part Number

C59-314

Below Coil Springs Only Suit Coil Over Shock Absorber

Linear Rate
Raised Height (45mm Lift)
0-50Kg
SEE MRA59-A460A

Part Number

C92-3013550

Linear Rate
Raised Height (45mm Lift)
50-90Kg
SEE MRA59-A460B

Part Number

C92-3013600

Shock Absorber

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 250mm / 9.8"

Part Number

IMS59-50460

X - Centre of Eye to Spring Seat

Must Use Original Top Spacer Block With Strut Cap

Monotube Remote Reservoir
(3-Way Adjustable)
Assembled Coil Over
Includes C92-3013550,
13" x 550lbs/in Coil Spring

Part Number

MRA59-A460A

Monotube Remote Reservoir
(3-Way Adjustable)
Assembled Coil Over
Includes C92-3013600,
13" x 600lbs/in Coil Spring

Part Number

MRA59-A460B

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-20mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC59-001

Must Use Original Top Spacer Block With Strut Cap

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Rear

Leaf Spring

5 + 3 Leaves
Standard Height (Approx)
Heavy Duty
250-300Kg Constant Load

Part Number

L59-173-R

3 + 3 Leaves
Raised Height (20mm Lift)
Light Duty
No Load

Part Number

L59-171-R

4 + 3 Leaves
Raised Height (45mm Lift)
Medium Duty
Up to 175Kg Constant Load

Part Number

L59-174-R

5 + 3 Leaves
Raised Height (45mm Lift)
Heavy Duty
300-350Kg Constant Load

Part Number

L59-175-R

6 + 3 Leaves
Raised Height (45mm Lift)
Super Heavy Duty
580Kg Constant Load

Part Number

L59-176-R

2 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
Comfort Option
Up to 60Kg Constant Load

Part Number

L59-178-RP

Shock Absorber

IFP Monotube Shock (IMS)

Part Number

IMS59-50461

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A461

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1503 (F)
4 x PB59-1501 (R)
4 x PB59-1502 (C)

Part Number

PB59-1094K

U-Bolt Kit

Suits L59-171/178RP
Kit Contains:
2 x UB59-439

Part Number

UB59-439K

Suits L59-173-R, L59-171-R,
L59-174-R, L59-175-R,
L59-176-R
Kit Contains:
2 x UB59-440

Part Number

UB59-440K

Shackle Kit

Rear of Rear Spring

Part Number

SK59-064

Shackle Pin

Front of Rear Spring
Greasable: Fit in Pairs

Part Number

SP59-060

This Part Is Recommended With All Kits As The Fuel Tank Location Inhibits Original Bolt Removal.

Tailshaft Spacer Kit

Tailshaft Cetre Bearing Spacer Kit Helps To Reduce Driveline Vibration In Lifted Vehicles.
Should Be Fitted To All Lifted Vehicles.
Lowers The Centre Bearing 12 or 24mm.

Part Number

WA59-553K

Headlight Adjuster

Recommended For Auto Headlight Models

Part Number

BA59-007
