Suitable For

Type:

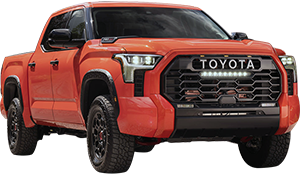

Tundra

Model:

K70 (2021 on)

Variant:

Detail:

4x4
2" (50mm) & 3" (75mm) Lift Front

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Raised Height (50mm Lift)
0-50Kg

Part Number

C59-834

Linear Rate
Raised Height (50mm Lift)
50-100Kg

Part Number

C59-836

Linear Rate
Raised Height (75mm Lift)
0-50Kg

Part Number

C59-838

Linear Rate
Raised Height (75mm Lift)
50-100Kg

Part Number

C59-840

Shock Absorber

Shock Absorbers Do Not Suit Sahara ZX & GR Sport Models With Factory Electronic Shock Absorbers

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 175mm / 6.87" To Steel

Part Number

IMS59-60446

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 175mm / 6.87" To Steel

Part Number

MRA59-A446

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable
0-35mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC59-006

Diff Drop

Diff Drop Kit

Part Number

DD59-542K

Sway Bar Relocation

Sway Bar Relocation Kit

Part Number

SE59-593K

Rear

Coil Spring

Variable Rate
Raised Height (20mm Lift)
0-50Kg Constant Load

Part Number

C59-835V

Variable Rate
Raised Height (20mm Lift)
100-200Kg Constant Load

Part Number

C59-837V

Variable Rate
Raised Height (20mm Lift)
250-350Kg Constant Load

Part Number

C59-839V

Variable Rate
Raised Height (50mm Lift)
0-50Kg Constant Load

Part Number

C59-841V

Variable Rate
Raised Height (50mm Lift)
100-200Kg Constant Load

Part Number

C59-843V

Variable Rate
Raised Height (50mm Lift)
250-350Kg Constant Load

Part Number

C59-845V

Shock Absorber

Shock Absorbers Do Not Suit Sahara ZX & GR Sport Models With Factory Electronic Shock Absorbers

IFP Monotube Shock (IMS)
(Long Travel)
(Comfort Option)

Part Number

IMS59-60887

IFP Monotube Shock (IMS)
(Long Travel)

Part Number

IMS59-60687

IFP Monotube Shock (IMS)
(Extra Long Travel)
(Comfort Option)

Part Number

IMS59-60885

IFP Monotube Shock (IMS)
(Extra Long Travel)

Part Number

IMS59-60685

Monotube Remote Reservoir
(3-Way Adjustable)
(Long Travel)
(Comfort Option)

Part Number

MRA59-A887

Monotube Remote Reservoir
(3-Way Adjustable)
(Long Travel)

Part Number

MRA59-A687

Monotube Remote Reservoir
(3-Way Adjustable)
(Extra Long Travel)

Part Number

MRA59-A685

Monotube Remote Reservoir
(3-Way Adjustable)
(Extra Long Travel)
(Comfort Option)

Part Number

MRA59-A885

Bump Stop

Hydraulic Bump Stop

Threaded Body
56mm Diameter
50mm Travel

Part Number

HBS56-001

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-027K

Panhard Rod

Adjustable Panhard Rod
(Complete with Bushes)

Part Number

PR59-1421

Recommended for Lifts Above 35mm to Correct Wheel Alignment.

Control Arm

Upper Control Arm

Adjustable Upper Control Arms (Pair)

Part Number

WA59-571K

Lower Control Arm

Adjustable Lower Control Arms (Pair)

Part Number

WA59-559K

Sway Bar Extension

Adjustable Extended Sway Bar Link
(Suits 2" to 3" Lift)

Part Number

SE59-591
