Suitable For

Type:

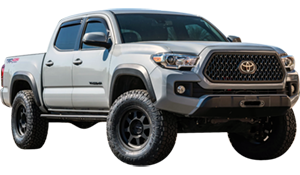

Tacoma

Model:

3rd Generation (2016 on)

Variant:

3" Lift

Detail:

Single Cab, Extra Cab, Dual Cab,
4x4,
2.7L i4, 3.5L V6,
75mm (3” Lift)

Download Catalogue Page

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

The following modifications (but not limited to) need to be made to the vehicle before the kit is fitted.

•Adjustable Panhard Rods

•Modified Leading / Trailing Arms

•Brake Hoses

•Extended Bump Stops

•Gear Box & Drive Line Modifications

•Steering Arms

•Swaybar Modification

Dobinsons Spring & Suspension do not accept any responsibility for injury caused to person or property through the use of the products listed on this page.

These products do not come with any warranty or guarantee.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Dual Cab

Linear Rate
Raised Height (75mm Lift)
Comfort Option - Reduced Rate

Part Number

C59-448

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-314

Linear Rate
Raised Height (75mm Lift)
Heavy Duty
50-100Kg

Part Number

C59-352

Shock Absorber

It Is Recommended To Fit A Diff Drop & High Clearance C.V. Boots With These Long Travel Shocks

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS59-220

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 226mm / 8.9"

Part Number

IMS59-50220

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 226mm / 8.9"

Part Number

MRA59-A220

X - Centre of Eye to Spring Seat

Includes Vehicle Specific Bracket.
If Vehicle Specific Bracket Does Not Work, Use RM80-005 Universal Bracket

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-25mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-003K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-203K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Strut Top Cap

Part Number

SC59-001

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Diff Drop Kit

Part Number

DD59-527K

Must Fit When Using Long Travel Shock Absorbers GS59-220, IMS59-50220 & MR59-50220 To Prevent C.V. Bind

Rear

Leaf Spring

3 + 2 Leaves
Raised Height (55mm Lift)
Medium Duty
Up to 100Kg Constant Load

Part Number

L59-110-R

4 + 2 Leaves
Raised Height (55mm Lift)
Heavy Duty
280Kg Constant Load

Part Number

L59-111-R

5 + 2 Leaves
Raised Height (55mm Lift)
400-550Kg Constant Load

Part Number

L59-112-R

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-940

IFP Monotube Shock (IMS)
(Long Travel)

Part Number

IMS59-50941

IMS59-50941 Will Require Bump Stop Extensions Or Longer Bump Stops To Prevent Shock Absorber Bottoming Out.

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A940

Monotube Remote Reservoir
(3-Way Adjustable)
(Long Travel)

Part Number

MRA59-A941

MRA59-A941 Will Require Bump Stop Extensions Or Longer Bump Stops To Prevent Shock Absorber Bottoming Out.

Spring & Shackle Bush Kit

Kit Contains:
6 x PB59-1503 (F, R, C)

Part Number

PB59-1101K

U-Bolt Kit

Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060
