Suitable For

Type:

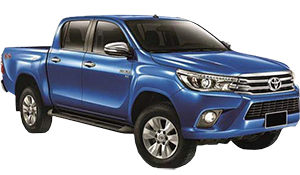

Hilux

Model:

Revo - N80 (2015 on)

Variant:

3" Lift - (KUN/GGN/GUN 125, 126, 135, 136) - Excludes 2022 on Rogue / GR Sport Wide Track

Detail:

4x4,
75mm Lift (3”)
Does Not Fit 2022 on Hilux Rouge or 2022 on Hilux GR Sport With Wider Wheel Track

Download Catalogue Page

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

The following modifications (but not limited to) need to be made to the vehicle before the kit is fitted.

•Adjustable Panhard Rods

•Modified Leading / Trailing Arms

•Brake Hoses

•Extended Bump Stops

•Gear Box & Drive Line Modifications

•Steering Arms

•Swaybar Modification

Dobinsons Spring & Suspension do not accept any responsibility for injury caused to person or property through the use of the products listed on this page.

These products do not come with any warranty or guarantee.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Single Cab

Linear Rate
Raised Height (75mm Lift)
50-100Kg

Part Number

C59-350

Dual Cab

Variable Rate
Raised Height (75mm Lift)
Softer Option
0-50Kg

Part Number

C59-798V

Variable Rate
Raised Height (75mm Lift)
Softer Option
60-100Kg

Part Number

C59-782V

Linear Rate
Raised Height (75mm Lift)
Heavy Duty
No Accessories

Part Number

C59-354

Linear Rate
Raised Height (75mm Lift)
Heavy Duty
30-50Kg

Part Number

C59-318

Linear Rate
Raised Height (75mm Lift)
Heavy Duty
60-100Kg

Part Number

C59-764

Shock Absorber

Must Fit Diff Drop Kit, Upper Control Arm & C.V. Boot Kit When Fitting a 3" Lift.

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 226mm / 8.9"

Part Number

IMS59-50574

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 226mm / 8.9"

Part Number

MRA59-A574

X - Centre of Eye to Spring Seat

Shock Absorber Reservoir Mounting

Reservoir Mounting Bracket Kit

Part Number

RM59-004

Required For MRA59-A574

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-30mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-003K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-203K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Strut Top Cap

Part Number

SC59-001

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Diff Drop Kit

Part Number

DD59-538K

Must Fit When Using Long Travel Shock Absorbers IMS59-50574 & MRA59-A574 To Prevent C.V. Bind

C.V. Boot

Inner C.V. Boot

High Clearance Inner C.V. Boot Kit

Part Number

CV59-557K

Must Be Fitted For Lifts Over 50mm To Reduce C.V. Boot Wear.
Can Also Be Used As Genuine Replacement

Outer C.V. Boot

High Clearance Outer C.V. Boot Kit

Part Number

CV59-554K

Must Be Fitted For Lifts Over 50mm To Reduce C.V. Boot Wear.
Can Also Be Used As Genuine Replacement

Sway Bar

Heavy Duty Sway Bar

Part Number

SB59-1936

Sway Bar Relocation

Swaybar Relocation Kit

Part Number

SE59-536K

Rear

Leaf Spring

2 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
Medium Duty
Up to 60Kg Constant Load

Part Number

L59-178-RP

L59-178-RP Lifts Only 50mm to Provide a More Level Look

2 + 1 Leaves (Parabolic)
Raised Height (75mm Lift)
Heavy Duty
Up to 60Kg Constant Load

Part Number

L59-179-RP

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-229

IFP Monotube Shock (IMS)

Part Number

IMS59-50229

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A229

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1503 (F)
4 x PB59-1501 (R)
4 x PB59-1502 (C)

Part Number

PB59-1094K

U-Bolt Kit

Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Shackle Kit

Rear of Rear Spring

Part Number

SK59-064

Shackle Pin

Front of Rear Spring
Greasable: Fit in Pairs

Part Number

SP59-060

This Part Is Recommended With All Kits As The Fuel Tank Location Inhibits Original Bolt Removal.

Sway Bar

Heavy Duty Sway Bar

Part Number

SB59-1941

Tailshaft Spacer Kit

Tailshaft Cetre Bearing Spacer Kit Helps To Reduce Driveline Vibration In Lifted Vehicles.
Should Be Fitted To All Lifted Vehicles.
Lowers The Centre Bearing 12 or 24mm.

Part Number

WA59-553K

Headlight Adjuster

Recommended For Auto Headlight Models

Part Number

BA59-007
