Suitable For

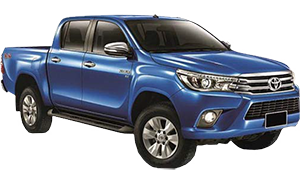

A vehicle image representing the page's contents

Type:

Hilux

Model:

Revo - N80 (2015 on)

Variant:

2" Lift - (KUN/GGN/GUN 125, 126, 135, 136) - Excludes 2022 on Rogue / GR Sport Wide Track

Detail:

4x4, 50mm Lift (2")
Does Not Fit 2022 on Hilux Rouge or 2022 on Hilux GR Sport With Wider Wheel Track
For a more level look, use 3" lift front suspension components

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Single Cab

Linear Rate
Standard Height (15mm Lift)
50-100Kg

Part Number

C59-718

Availability

Linear Rate
Raised Height (45mm Lift)
Up to 50Kg

Part Number

C59-302

Availability

Linear Rate
Raised Height (45mm Lift)
60-100Kg

Part Number

C59-350

Availability

Dual Cab

Linear Rate
Standard Height
50-80Kg

Part Number

C59-718

Availability

Linear Rate
Raised Height (45mm Lift)
Comfort Option
Up to 20Kg

Part Number

C59-302

Availability

Linear Rate
Raised Height (45mm Lift)
Heavy Duty
Up to 60Kg

Part Number

C59-350

Availability

Linear Rate
Raised Height (45mm Lift)
Heavy Duty
70-90Kg

Part Number

C59-352

Availability

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
100-120Kg

Part Number

C59-736

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-228

Availability

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 226mm / 8.89"

Part Number

IMS59-50700

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 226mm / 8.89"

Part Number

MRA59-A228

Availability

X - Centre of Eye to Spring Seat

Includes Vehicle Specific Bracket.
If Vehicle Specific Bracket Does Not Work, Use RM80-005 Universal Bracket

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-30mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC59-001

Availability

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Availability

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Sway Bar

Heavy Duty Sway Bar

Part Number

SB59-1936

Availability

Rear

Leaf Spring

5 + 3 Leaves
Standard Height (Approx)
Heavy Duty
250-300Kg Constant Load

Part Number

L59-173-R

Availability

3 + 3 Leaves
Raised Height (20mm Lift)
Light Duty
No Load

Part Number

L59-171-R

Availability

4 + 3 Leaves
Raised Height (45mm Lift)
Medium Duty
Up to 175Kg Constant Load

Part Number

L59-174-R

Availability

5 + 3 Leaves
Raised Height (45mm Lift)
Heavy Duty
300-350Kg Constant Load

Part Number

L59-175-R

Availability

6 + 3 Leaves
Raised Height (45mm Lift)
Super Heavy Duty
580Kg Constant Load

Part Number

L59-176-R

Availability

2 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
Comfort Option
Up to 60Kg Constant Load

Part Number

L59-178-RP

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-229

Availability

IFP Monotube Shock (IMS)

Part Number

IMS59-50229

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A229

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1503 (F)
4 x PB59-1501 (R)
4 x PB59-1502 (C)

Part Number

PB59-1094K

Availability

U-Bolt Kit

Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Availability

Shackle Kit

Rear of Rear Spring

Part Number

SK59-064

Availability

Shackle Pin

Front of Rear Spring
Greasable: Fit in Pairs

Part Number

SP59-060

Availability

This Part Is Recommended With All Kits As The Fuel Tank Location Inhibits Original Bolt Removal.

Tailshaft Spacer Kit

Tailshaft Centre Bearing Spacer Kit Helps To Reduce Driveline Vibration In Lifted Vehicles.
Lowers The Centre Bearing 12 or 24mm.

Part Number

WA59-553K

Availability

Tailshaft Centre Bearing Is Required For All Lifted Vehicles.

Sway Bar

Heavy Duty Sway Bar

Part Number

SB59-1941

Availability

Headlight Adjuster

Recommended For Auto Headlight Models

Part Number

BA59-007

Availability
