Suitable For

Type:

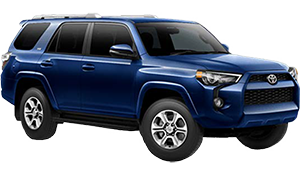

4 Runner

Model:

5th Generation - GRN285 (2009 on)

Variant:

3" Lift

Detail:

4.0L V6 Petrol,
75mm Lift (3”)

Download Catalogue Page

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

The following modifications (but not limited to) need to be made to the vehicle before the kit is fitted.

•Adjustable Panhard Rods

•Modified Leading / Trailing Arms

•Brake Hoses

•Extended Bump Stops

•Gear Box & Drive Line Modifications

•Steering Arms

•Swaybar Modification

Dobinsons Spring & Suspension do not accept any responsibility for injury caused to person or property through the use of the products listed on this page.

These products do not come with any warranty or guarantee.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Below Coil Springs Suit GS59-574 Shock Absorber

The Below Coil Springs Will Provide Approximately 3” Lift When Fitted With Suitable Long Travel Shock Absorbers With Original Spring Seat Height.

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-302

Linear Rate
Raised Height (75mm Lift)
40-60Kg

Part Number

C59-314

Linear Rate
Raised Height (75mm Lift)
80-100Kg

Part Number

C59-354

Shock Absorber

Twin Tube Nitro-Gas
(Extra Long Travel)

Part Number

GS59-574

Spring Seat 12mm Higher Than OE

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 225mm / 8.8"

Part Number

IMS59-50574

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 225mm / 8.8"

Part Number

MRA59-A574

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-25mm Extension

Part Number

BS59-560

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-002K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-202K

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Diff Drop Kit

Part Number

DD59-527K

Must Fit When Using Long Travel Shock Absorbers GS59-574 To Prevent C.V. Bind

Sway Bar Relocation

Sway Bar Relocation Kit

Part Number

SE59-535K

Rear

Coil Spring

Vehicles With a 3rd Row Seat Will Lift 5mm Less

Linear Rate
Raised Height (50mm Lift)

Part Number

C59-325

Linear Rate
Raised Height (50mm Lift)
100-200Kg Constant Load

Part Number

C59-327

Linear Rate
Raised Height (50mm Lift)
Extra Heavy Duty
300-400Kg Constant Load

Part Number

C59-329

Variable Rate
Raised Height (60mm Lift)
60Kg Constant Load
Comfort Option

Part Number

C59-675V

Variable Rate
Raised Height (75mm Lift)
No Accessories

Part Number

C59-675V

Variable Rate
Raised Height (75mm Lift)
80-160Kg Constant Load
Comfort Option

Part Number

C59-677V

Variable Rate
Raised Height (75mm Lift)
200-300Kg Accessories

Part Number

C59-701V

Variable Rate
Raised Height (75mm Lift)
450Kg Constant Load

Part Number

C59-749V

Shock Absorber

GS59-705, IMS59-50575 & MRA59-50575 Suit Only Variable Rate Coils & Require Bump Stop Extension

Twin Tube Nitro-Gas
Comfort Option
Extra Soft - No Load

Part Number

GS59-705

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS59-701

Twin Tube Nitro-Gas
(Extra Long Travel)

Part Number

GS59-575

GS59-575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

IFP Monotube Shock (IMS)
Extra Heavy Duty

Part Number

IMS59-50701

IFP Monotube Shock (IMS)
Extra Heavy Duty
(Long Travel)

Part Number

IMS59-50575

IMS59-50575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A701

Monotube Remote Reservoir
(3-Way Adjustable)
(Long Travel)

Part Number

MRA59-A575

MRA59-A575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

Bump Stop

Hydraulic Bump Stop

Replaces OEM Inner Coil Bump Stops For Smoother Bottom Out And Reduced Bucking

Height Adjustable - Can Be Used As Bump Stop Extension Kit

Threaded Body
56mm Diameter
46mm Travel

Part Number

HBS56-009

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-010FK

Control Arm

Designed For More Articulation

Upper Control Arm

Heavy Duty Rear Upper
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-522K

Lower Control Arm

Heavy Duty Rear Lower
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-520K

Panhard Rod

Adjustable Panhard Rod
(Complete with Bushes)

Part Number

PR59-1423

Sway Bar Extension

Adjustable Sway Bar Extension
(Suits 2" to 4" Lift)

Part Number

SE59-529
