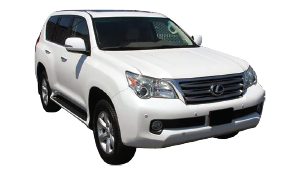

Lexus GX
4.6L V8,
75mm Lift (3")
New product is added into quote successfully.
Designed For 75mm Lift With GS59-574 & MR59-50574 Shocks
X - Centre of Eye to Spring Seat
X - Centre of Eye to Spring Seat
Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.
Upper Control Arm
Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment
Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment
Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers
Helps With CV Angle
Without KDSS
With KDSS
Adds Additional 15mm To Listed Lift Heights.
Requires Coil Springs & Shock Absorbers.
GS59-705, IMS59-50575 & MRA59-50575 Suit Only Variable Rate Coils & Require Bump Stop Extension
GS59-575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out
IMS59-50575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out
MRA59-A575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out
Upper Control Arm
Lower Control Arm
For Non KDSS Models
