*Images for illustration purposes only.

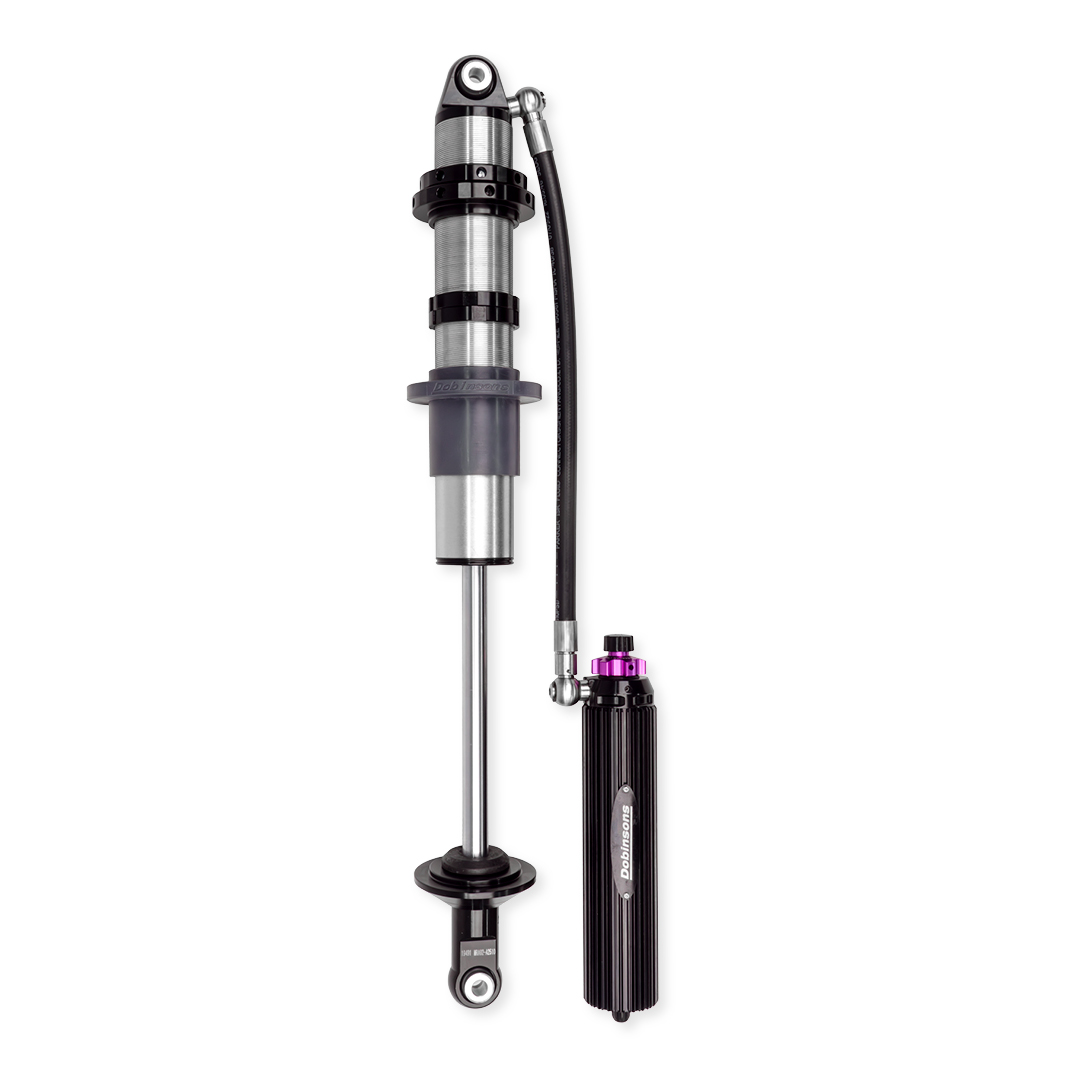

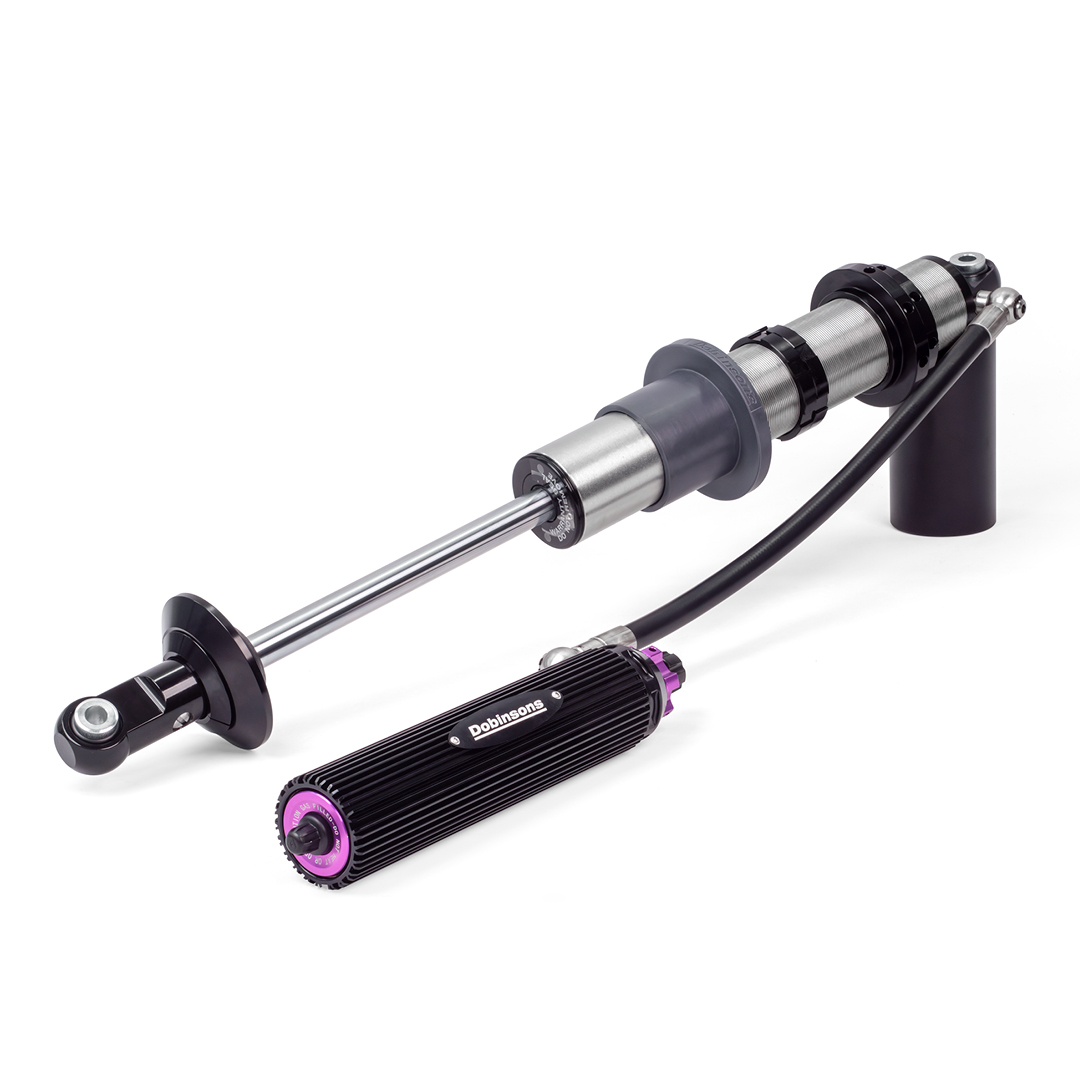

This new range of 2.5” Adjustable Remote Reservoir Dual Rate Coil-Overs have been designed and manufactured with the highest level of performance and reliability in mind.
Manufactured from high strength DOM 3mm wall steel tubing, Dobinsons Coil-Overs utilise a 2.6”/66mm body, with a 2.35”/60mm high-flow CNC machined t6 6061 piston, designed to be fitted with 3” inside diameter coil springs.
Features
- 5140 HV900 hard chrome plated, heat treated 22mm micro-polished high strength shock shaft
- Shaft minimum tensile strength exceeding 700MPA/100 psi and hardness exceeding 46HRC
- Shock body precision honed to +/- 0.04mm
- Parker steel braided high pressure hoses
- Lightweight CNC machined low friction floating piston
- 3 stage FMK+HNBR long life, low friction sealing system
- PTFE lined high quality spherical bearings
- Fully rebuildable and tunable
- Dual rate design with high quality slider & cross-over rings
- 64mm finned reservoir
- 350v.l. high performance damping fluid
- T6061 CNC machined ultra high flow race piston
Coil-Over Shock Absorber (14")
$ 1099.00
Coil Springs
Length : 14 inch
Rate : 150 lbs/inch
Solid Length : 4.87 inch
Coil Springs
Length : 14 inch
Rate : 200 lbs/inch
Solid Length : 5.3 inch
Coil Springs
Length : 14 inch
Rate : 250 lbs/inch
Solid Length : 5.9 inch
Coil Springs
Length : 14 inch
Rate : 300 lbs/inch
Solid Length : 5.63 inch
Coil Springs
Length : 14 inch
Rate : 350 lbs/inch
Solid Length : 5.87 inch
Coil Springs
Length : 14 inch
Rate : 400 lbs/inch
Solid Length : 5.8 inch
Coil Springs
Length : 14 inch
Rate : 450 lbs/inch
Solid Length : 6.13 inch
Coil Springs
Length : 14 inch
Rate : 500 lbs/inch
Solid Length : 5.61 inch
Coil Springs
Length : 14 inch
Rate : 550 lbs/inch
Solid Length : 5.85 inch
Coil Springs
Length : 14 inch
Rate : 600 lbs/inch
Solid Length : 6.12 inch
Coil Springs
Coil Springs
Length : 16 inch
Rate : 200 lbs/inch
Solid Length : 5.59 inch
Coil Springs
Length : 16 inch
Rate : 250 lbs/inch
Solid Length : 6.25 inch
Coil Springs
Length : 16 inch
Rate : 300 lbs/inch
Solid Length : 6.7 inch
Coil Springs
Coil Springs
Length : 16 inch
Rate : 400 lbs/inch
Solid Length : 6.78 inch
Coil Springs
Coil Springs
Length : 16 inch
Rate : 500 lbs/inch
Solid Length : 6.67 inch
Coil Springs
Coil Springs
Length : 16 inch
Rate : 600 lbs/inch
Solid Length : 7.67 inch
Coil Springs
Length : 16 inch
Rate : 650 lbs/inch
Solid Length : 7.53 inch
Coil Springs
Length : 16 inch
Rate : 700 lbs/inch
Solid Length : 7.44 inch
 | Length: | |
 | Width: | |
 | Height: | |
 | Weight: |
