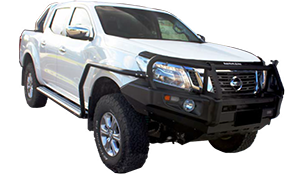

Navara, Frontier

Model:

D23, NP300 (08/2014 on)

Variant:

3"-3.5" Lift (Coil Spring Rear Suspension Models)

Detail:

4x4 Single Cab / Dual Cab / Extra Cab

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Pro4x / Pro4x Warrior Will Lift 30mm Less Than Stated Due To Increased Factory Ride Height

2.3L & 2.5L Turbo Diesel

Linear Rate
Raised Height (75mm Lift)
0-50Kg

Part Number

C45-468

Availability

Linear Rate
Raised Height (75mm Lift)
60-90Kg

Part Number

C45-470

Availability

Shock Absorber

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

IMS45-50648

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

MRA45-A648

Availability

X - Centre of Eye to Spring Seat

Includes Vehicle Specific Reservoir Mount Kit

Must Be Fitted With UCAs

Shock Extended Length Must Not Exceed 415mm

Series 5 May Require Notching Of The Lower Trailing Arm to Allow MRR To Fit

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-20mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

6082 Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
Rubber Bushes
with Ball Joint
(Long Travel)

Part Number

UCA45-205K

Availability
