Suitable For

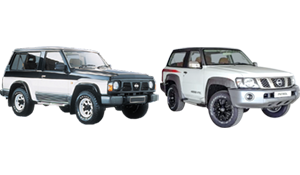

A vehicle image representing the page's contents

Type:

Patrol, Safari

Model:

Y60 GQ (1987 to 1998), Y61 GU (1997 on)

Variant:

SWB Wagon (3" & 4" Lift)

Detail:

SWB,
75mm (3” Lift), 100mm (4” Lift)

Download Catalogue Page

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

The following modifications (but not limited to) need to be made to the vehicle before the kit is fitted.

•Adjustable Panhard Rods

•Modified Leading / Trailing Arms

•Brake Hoses

•Extended Bump Stops

•Gear Box & Drive Line Modifications

•Steering Arms

•Swaybar Modification

Dobinsons Spring & Suspension do not accept any responsibility for injury caused to person or property through the use of the products listed on this page.

These products do not come with any warranty or guarantee.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Petrol Engine

Linear Rate
Raised Height (3" Lift)

Part Number

C45-136

Availability

Linear Rate
Raised Height (3" Lift)
60-100Kg

Part Number

C45-134

Availability

Linear Rate
Raised Height (4" Lift)

Part Number

C45-304

Availability

Linear Rate
Raised Height (4" Lift)
50-100kg

Part Number

C45-314

Availability

Diesel Engine

Linear Rate
Raised Height (3" Lift)

Part Number

C45-134

Availability

Linear Rate
Raised Height (3" Lift)
50-100kg

Part Number

C45-304

Availability

Linear Rate
Raised Height (4" Lift)

Part Number

C45-314

Availability

Linear Rate
Raised Height (4" Lift)
50-100kg

Part Number

C45-316

Availability

Shock Absorber

Twin Tube Nitro-Gas
(3" Lift)

Part Number

GS51-116

Availability

IFP Monotube Shock (IMS)
(3" Lift)

Part Number

IMS51-60116

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
(3" Lift)

Part Number

MRA51-A116

Availability

IFP Monotube Shock (IMS)
(4" Lift)

Part Number

IMS45-60914

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
(4" Lift)
(Universal Reservoir Mounts Included)

Part Number

MRA45-A914

Availability

Reservoir Mounting Bracket RM59-041 Recommended For Optimal Fitment

Shock Absorber Reservoir Mounting

Icon for a Dobinsons Reservoir Mounting Bracket Kit

Reservoir Mounting Bracket Kit

Part Number

RM45-007

Availability

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Steering Damper

Heavy Duty (Big Bore) - Complete with Fittings

Y60 GQ - 1988 to 08/1989

Heavy Duty (Big Bore) - Complete with Fittings

Part Number

SD45-834

Availability

Y60 GQ - 08/1989 to 1999

Heavy Duty (Big Bore) - Complete with Fittings

Part Number

SD45-836

Availability

Y61 GU - 12/1997 to 02/2000

Heavy Duty (Big Bore) - Complete with Fittings

Part Number

SD51-811

Availability

Y61 GU - 02/2000 on

Heavy Duty (Big Bore) - Complete with Fittings

Part Number

SD45-801

Availability

Some 02/2000 on Latin American Wagons May Require SD51-811.
Check End Configuration Before Ordering.

Adjustable Monotube Heavy Duty - Complete with Fittings & Mounts

Y60 GQ & Y61 GU
Suits Draglinks and Panhard Rods 28-38mm Ø
May Require Existing Mounts To Be Cut Off

Part Number

SS51A811

Availability

Bump Stop

Hydraulic Bump Stop

Hydraulic Bump Stop
Threaded Height Adjustable
66mm Body x 57mm Travel
(2"-4" Lift)

Part Number

HBS66-002

Availability

Hydraulic Bump Stop
Threaded Height Adjustable
66mm Body x 85mm Travel
(4"-6" Lift)

Part Number

HBS66-003

Availability

Hydraulic Bump Stop Mounting Kit

Icon for a Dobinsons Hydraulic Bump Stop Mounting Kit

Hydraulic Bump Stop Mounting Kit
(Weld In)
(Excludes Bump Stops)

Part Number

HBS45-007K

Availability

Rubber Bump Stop

Icon for a Dobinsons Bump Stop

Adjustable Soft-Hit Bump Stop
(Suits 0-56mm extension)

Part Number

BS45-528

Availability

Castor Kit

Raising Vehicle Will Effect Castor Angle.
A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0°, ±2.5° or ±3.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Availability

Icon for a Dobinsons Castor Kit

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-522K

Availability

Panhard Rod

Suits Y60 GQ & Y61 GU (to 02/2000)

Icon for a Dobinsons Adjustable Panhard Rod

Adjustable Panhard Rod
Right Hand Drive
(Complete with Bushes)

Part Number

PR45-1402

Availability

Adjustable Panhard Rod
Left Hand Drive
(Complete with Bushes)

Part Number

PR45-1407

Availability

Suits Y61 GU Only (02/2000 on)
Ball Joint to Chassis Mount

Adjustable Panhard Rod
Right Hand Drive
(Complete with Ball Joint & Bush)

Part Number

PR45-1416

Availability

Adjustable Panhard Rod
Left Hand Drive
(Complete with Ball Joint & Bush)

Part Number

PR45-1409

Availability

Panhard Rod Bush

Does Not Fit OE
Upper/Chassis Bush

Part Number

RB45-6025

Availability

Does Not Fit OE
Lower/Diff Bush

Part Number

RB45-6027

Availability

Does Not Fit OE
Ball Joint-Upper/Chassis Bush

Part Number

BJ45-6026

Availability

Gearbox Spacer Kit

Recommended For Reducing Drive Line Vibration On Raised Vehicles

Part Number

TC45-001K

Availability

Sway Bar Extension

Icon for a Dobinsons Sway Bar Extension

Adjustable Sway Bar Extension
(Suits 4" to 6" Lift)

Part Number

SE45-520

Availability

Coil Spacer

15mm

Part Number

PS45-4010

Availability

30mm

Part Number

PS45-4011

Availability

Rubber Coil Seat

Replacement Upper Rubber Coil Seat

Part Number

RS45-4026

Availability

Rear

Coil Spring

Recommended To Fit WA45-510K & TC45-001K To All Raised SWB Vehicles To Reduce Driveline Vibration

Linear Rate
Raised Height (3" Lift)

Part Number

C45-189

Availability

Variable Rate
Raised Height (3" Lift)
150-200Kg Constant Load

Part Number

C45-387V

Availability

Linear Rate
Raised Height (3" Lift)
200-270Kg Constant Load

Part Number

C45-107

Availability

Linear Rate
Raised Height (4" Lift)

Part Number

C45-193

Availability

Linear Rate
Raised Height (4" Lift)
200-270Kg Constant Load

Part Number

C45-321

Availability

Shock Absorber

Twin Tube Nitro-Gas
(3"-4" Lift)

Part Number

GS45-913

Availability

IFP Monotube Shock (IMS)
(3"-4" Lift)

Part Number

IMS45-60913

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
(3"-4" Lift)

Part Number

MRA45-A913N

Availability

Includes Reservoir Mounts (RM45-017) To Suit Genuine Rear Fuel Tanks Only

Universal Reservoir Mount Bracket (RM80-005) May Be Required If Standard Mounts Do Not Work (Sold Separately)

Bump Stop

Hydraulic Bump Stop

Hydraulic Bump Stop
Threaded Height Adjustable
56mm Body x 50mm Travel
(3"-6" Lift)

Part Number

HBS56-001

Availability

Hydraulic Bump Stop Mounting Kit

Icon for a Dobinsons Hydraulic Bump Stop Mounting Kit

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS45-008FK

Availability

Rubber Bump Stop

Icon for a Dobinsons Bump Stop

Adjustable Soft-Hit Bump Stop
(Suits 0-56mm extension)

Part Number

BS45-529

Availability

Control Arm

Upper Control Arm

Adjustable Upper Control Arms (Pair)
with Bushes

Part Number

WA45-510K

Availability

Lower Control Arm

Adjustable Lower Control Arms (Pair)
40mm OD
6mm Wall

Part Number

WA59-551K

Availability

Brake Adjuster

Icon for a Dobinsons Brake Adjuster

Recommended when Raising Vehicle
(Suits 2" to 6" Lift)

Part Number

BA45-005

Availability

Panhard Rod

Suits Y60 GQ & Y61 GU (to 02/2000)

Adjustable Panhard Rod
Right Hand Drive & Left Hand Drive
(Complete with Bushes)

Part Number

PR45-1403

Availability

Suits Y61 GU Only (02/2000 on)
Ball Joint to Chassis Mount

Adjustable Panhard Rod
(Complete with Ball Joint and Bush)

Part Number

PR45-1415

Availability

Panhard Rod Bush

Does Not Fit OE
Upper/Chassis Bush

Part Number

RB45-6025

Availability

Does Not Fit OE
Lower/Diff Bush

Part Number

RB45-6027

Availability

Does Not Fit OE
Ball Joint-Upper/Chassis Bush

Part Number

BJ45-6026

Availability

Sway Bar Extension

* Check Sway Bar Link Configuration - Some Vehicles Require 2 of the Same Sway Bar and Other Vehicles Require 1 of Each Sway Bar

Icon for a Dobinsons Sway Bar Extension

Adjustable Sway Bar Extension
(Suits 4" to 6" Lift)
Stem Upper/Right Angle Lower Joint*

Part Number

SE45-520

Availability

Adjustable Sway Bar Extension
(Suits 4" to 6" Lift)
Right Angle Upper/Right Angle Lower Joint*

Part Number

SE45-521

Availability

Coil Spacer

15mm

Part Number

PS45-4012

Availability

30mm

Part Number

PS45-4013

Availability

Rubber Coil Seat

Replacement Upper Rubber Coil Seat

Part Number

RS45-4027

Availability

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes
* Excludes Spherical Panhard Rod Bush for Wagon Models 02/2000 on

Pre 1989

Kit Contains:
4 x Front Radius Arm to Chassis Bush
4 x Front Radius Arm to Diff Bush
2 x Front Panhard Rod Bush
2 x Rear Panhard Rod Bush
8 x Rear Control Arm Bush

Part Number

PB45-1231K

Availability

1989 on

Kit Contains:
4 x Front Radius Arm to Chassis Bush
4 x Front Radius Arm to Diff Bush
4 x Front & Rear Panhard Rod Bush
8 x Rear Upper & Lower Control Arm Bush

Part Number

PB45-1239K

Availability
