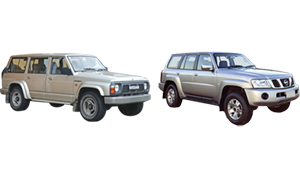

Nissan
Patrol, Safari
Y60 GQ (1987 to 1998), Y61 GU (1997 on)
LWB Wagon & Pickup / Utility (3" FLEXI Lift)
Wagon & Pickup / Utility,
75mm (3” FLEXI Lift)
New product is added into quote successfully.
Coil Spring
*Due to the flexi coils design requirements they are not recommended for heavily laden vehicles.
The vehicle Bump Stops MUST be extended regardless of the shock absorber length by a minimum of 40mm to prevent coil bind & over stressing.
All Coils Variable Rate
2.8L & 3.0L T/Diesel, 4.2L Diesel
4.5L & 4.8L Petrol, 4.2L T/Diesel
Shock Absorber
Shock Absorber Reservoir Mounting
Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength
Steering Damper
Heavy Duty (Big Bore) - Complete with Fittings
Adjustable Monotube Heavy Duty - Complete with Fittings & Mounts
Bump Stop
*Due to the flexi coils design requirements they are not recommended for heavily laden vehicles.
The vehicle bump stops MUST be extended regardless of the shock absorber length by a minimum of 40mm to prevent coil bind & over stressing.
Hydraulic Bump Stop
Hydraulic Bump Stop Mounting
Rubber Bump Stop
Castor Kit
Raising Vehicle Will Effect Castor Angle.
A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.
Radius Arm Bush
Drop Box Kit
May be Required for Vehicles Lifted Closer to 4”.
Extensive Modifications Are No Longer Required to Fit This Kit.
Gives a 5° of Castor Adjustment.
Leading Arm Modifications are not Required when Fitting this Part Number.
Castor Plate Kit
Panhard Rod
Suits Y60 GQ & Y61 GU - Complete with Bushes
Suits Y61 GU Only - Complete with Ball Joint & Bush
Panhard Rod Bush
Draglink
Suits GQ/Y60
Suits GU/Y61
Gearbox Spacer Kit
Rubber Coil Seat
Coil Spring
*Due to the flexi coils design requirements they are not recommended for heavily laden vehicles.
The vehicle Bump Stops MUST be extended regardless of the shock absorber length by a minimum of 40mm to prevent coil bind & over stressing.
All Coils Variable Rate
Shock Absorber
Includes Reservoir Mounts (RM45-017) To Suit Genuine Rear Fuel Tanks Only
Universal Reservoir Mount Bracket (RM80-005) May Be Required If Standard Mounts Do Not Work (Sold Separately)
Bump Stop
Hydraulic Bump Stop
Hydraulic Bump Stop Mounting
Rubber Bump Stop
Control Arm
Upper Control Arm
Lower Control Arm
Brake Adjuster
Panhard Rod
Suits Y60 GQ & Y61 GU
Suits Y61 GU Only
Ball Joint to Chassis Mount
Panhard Rod Bush
Rubber Coil Seat
Under Body Bush Kit
Kit Includes Front & Rear Under Body Bushes
* Excludes Spherical Panhard Rod Bush for Wagon Models 02/2000 on
