Suitable For

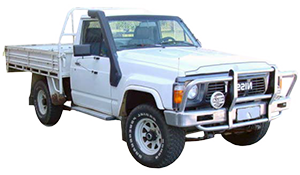

A vehicle image representing the page's contents

Type:

Patrol, Safari

Model:

Y60 GQ (1988 to 05/1998)

Variant:

Pickup / Utility - Leaf Spring (2" Lift)

Detail:

Pickup / Utility,
Leaf Spring Suspension

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Leaf Spring

7 Leaves
Raised Height (45mm Lift)

Part Number

Y60-7L-F

Availability

8 Leaves
Raised Height (45mm Lift)
50-100Kg
Recommended

Part Number

Y60-8L-F

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-640

Availability

Spring & Shackle Bush Kit

Kit Contains:
8 x PB59-1517
4 x PB59-1518

Part Number

PB45-1018K

Availability

U-Bolt Kit

Kit Contains:
2 x UB45-669

Part Number

UB45-669K

Availability

Shackle Kit

Greasable: Fit Right & Left as Pair
Right Hand Side
(AntiReverse)

Part Number

SK59-048

Availability

Greasable: Fit Right & Left as Pair
Left Hand Side
(AntiReverse)

Part Number

SK59-047

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-023

Availability

Steering Damper

Heavy Duty
Complete with Fittings

Part Number

SD45-022

Availability

Rear

Leaf Spring

Right Hand Side
5 + 2 Leaves
Raised Height (50mm Lift)
Up to 150Kg Constant Load

Part Number

Y60-5+2-R RH

Availability

Left Hand Side
5 + 2 Leaves
Raised Height (50mm Lift)
Up to 150Kg Constant Load

Part Number

Y60-5+2-R LH

Availability

Right Hand Side
6 + 2 Leaves
Raised Height (50mm Lift)
300Kg Constant Load
Recommended

Part Number

Y60-6+2-R RH

Availability

Left Hand Side
6 + 2 Leaves
Raised Height (50mm Lift)
300Kg Constant Load
Recommended

Part Number

Y60-6+2-R LH

Availability

Right Hand Side
7 + 2 Leaves
Raised Height (50mm Lift)
500Kg Constant Load

Part Number

Y60-7+2-R RH

Availability

Left Hand Side
7 + 2 Leaves
Raised Height (50mm Lift)
500Kg Constant Load

Part Number

Y60-7+2-R LH

Availability

Shock Absorber

Twin Tube Nitro-Gas
(Big Bore)

Part Number

GS45-125

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A125

Availability

Spring & Shackle Bush Kit

Kit Contains:
12 x PB59-1517

Part Number

PB59-1019K

Availability

U-Bolt Kit

Kit Contains:
2 x UB45-670-1

Part Number

UB45-670-1K

Availability

Shackle Kit

Greasable: Fit Right & Left as Pair
Right Hand Side
(AntiReverse)

Part Number

SK59-048

Availability

Greasable: Fit Right & Left as Pair
Left Hand Side
(AntiReverse)

Part Number

SK59-047

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-023

Availability
