Suitable For

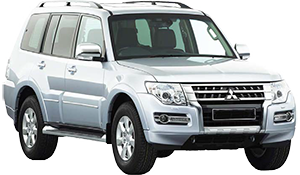

A vehicle image representing the page's contents

Type:

Pajero

Model:

V7 - NM, NP, NS, NT, NW (2000 on)

Variant:

Detail:

SWB, LWB V78, Wagon 3.5L V6, 3.8L V6, 3.2L TDi

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

We Recommend A Wheel Alignment Be Carried Out After Fitting Springs.

SWB & LWB
NM - NP 3.5L V6
NS - NW 3.8L V6

Linear Rate
Standard Height (10mm Lift)

Part Number

C43-122

Availability

Linear Rate
Raised Height (40mm Lift)
Extra Heavy Duty
Up to 100Kg

Part Number

C43-126

Availability

Linear Rate
Raised Height (45mm Lift)
Recommended

Part Number

C43-124

Availability

SWB & LWB
NM - NW 3.2L Tdi

Linear Rate
Raised Height (40mm Lift)

Part Number

C43-126

Availability

Linear Rate
Raised Height (40mm Lift)
50-80Kg

Part Number

C43-148

Availability

Linear Rate
Raised Height (40mm Lift)
80-100Kg

Part Number

C43-144

Availability

Shock Absorber

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 241mm / 9.49"

Part Number

IMS43-50783

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(2-Way Compression Adjustable)
Adjustable Spring Seat Height
X = 241mm / 9.49"

Part Number

MRA43-A783

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-20mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC43-008

Availability
