Suitable For

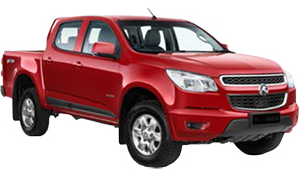

A vehicle image representing the page's contents

Type:

Colorado

Model:

RG (05/2012 on)

Variant:

0"-2" Lift

Detail:

GM 1700, MMU 142 / 143 / 145 / 147 / 148

Download Catalogue Page

This vehicle has been issued with a recall notice to change the Coil Spring Stepped Isolator.
Take care when ordering Coil Springs or Shock Absorbers.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

For vehicles with the Flat Type Upper Coil Isolator

Linear Rate
Standard Height (10mm Lift)
50-80Kg

Part Number

C59-134

Availability

Linear Rate
Raised Height (40mm Lift)

Part Number

C59-296

Availability

Linear Rate
Raised Height (40mm Lift)
40-80Kg

Part Number

C59-300

Availability

Linear Rate
Raised Height (40mm Lift)
Extra Heavy Duty
100-120Kg

Part Number

C59-350

Availability

Suits vehicles with the Coil Spring Stepped Isolator fitted

Linear Rate
Standard Height (10mm Lift)
50-100Kg

Part Number

C21-382

Availability

Linear Rate
Raised Height (40mm Lift)
Up to 40Kg

Part Number

C21-384

Availability

Linear Rate
Raised Height (40mm Lift)
50-80Kg

Part Number

C21-386

Availability

Linear Rate
Raised Height (40mm Lift)
80-100Kg

Part Number

C21-388

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS21-470

Availability

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 190mm / 7.48”

Part Number

IMS21-50470

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 190mm / 7.48”

Part Number

MRA21-A470-1

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-20mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC59-002

Availability

Can only be used with C59-134, C59-296, C59-300 or C59-350

Rear

Leaf Spring

3 + 3 Leaves
Medium Duty
Raised Height (40mm Lift)
Up to 100Kg Constant Load

Part Number

L21-140-R

Availability

4 + 3 Leaves
Heavy Duty
Raised Height (40mm Lift)
250Kg Constant Load (Recommended)

Part Number

L21-141-R

Availability

5 + 3 Leaves
Super Heavy Duty
Raised Height (40mm Lift)
450Kg Constant Load

Part Number

L21-142-R

Availability

2 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
Up to 70Kg Constant Load
Comfort Option

Part Number

L21-182-RP

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS43-801

Availability

IFP Monotube Shock (IMS)

Part Number

IMS21-50471

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA43-A801

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1503 (F)
4 x PB59-1530 (R)
4 x PB59-1532 (C)

Part Number

PB21-1105K

Availability

U-Bolt Kit

Suits L21-140-R
Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Availability

Suits L21-141-R
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Availability

Suits L21-142-R
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Availability

Suits L21-182-RP
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK21-059

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability
