Suitable For

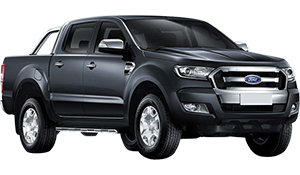

A vehicle image representing the page's contents

Type:

Ranger

Model:

PX / T7 MKIII (06/2018 to 2022)

Variant:

2" Lift - 4x4 Strut Mounted Front Bump Stop Models Only (Also Suits 4x2 High-Rider)

Detail:

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Standard Height (10mm Lift)
40-70Kg

Part Number

C19-508

Availability

Linear Rate
Raised Height (45mm Lift)

Part Number

C19-510

Availability

Linear Rate
Raised Height (45mm Lift)
Comfort Option
0-30Kg

Part Number

C19-620

Availability

Linear Rate
Raised Height (45mm Lift)
40-70Kg

Part Number

C19-512

Availability

Linear Rate
Raised Height (45mm Lift)
80-100Kg

Part Number

C19-514

Availability

Shock Absorber

Must Fit Sway Bar Link SE19-570 With These Shock Absorbers

Twin Tube Nitro-Gas

Part Number

GS19-094

Availability

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 167mm / 6.56"

Part Number

IMS19-50094

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 167mm / 6.56"

Part Number

MRA19-A094

Availability

X - Centre of Eye to Spring Seat

Shock Absorber Reservoir Mounting

Reservoir Mounting Bracket Kit

Part Number

RM19-002

Availability

Only For Use With MRA19-A094

Recommended For Optimal Remote Reservoir Fitment, Positioning & Strength

Strut Top Cap

Part Number

SC19-010

Availability

Sway Bar Link

Must Fit With Dobinsons Shock Absorbers

Part Number

SE19-570

Availability

Strut Top Cap

Part Number

SC19-010

Availability

Rear

Leaf Spring

3 + 3 Leaves
Medium Duty
Raised Height (35mm Lift)
Up to 100Kg Constant Load

Part Number

L19-131-R

Availability

4 + 3 Leaves
Heavy Duty
Raised Height (40mm Lift)
280Kg Constant Load (Recommended)

Part Number

L19-132-R

Availability

5 + 3 Leaves
Super Heavy Duty
Raised Height (40mm Lift)
500Kg Constant Load

Part Number

L19-133-R

Availability

3 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
150Kg Constant Load
Comfort Option

Part Number

L19-135-RP

Availability

3 + 1 Leaves (Parabolic)
Raised Height (60mm Lift)

Part Number

L19-135-RP

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS19-081T

Availability

IFP Monotube Shock (IMS)

Part Number

IMS19-50081T

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA19-A081T

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB19-1523
4 x PB19-1524
4 x PB19-1525

Part Number

PB19-1104K

Availability

U-Bolt Kit

Kit Contains:
2 x UB21-466

Part Number

UB21-466K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK19-058

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability

Tailshaft Spacer Kit

Tailshaft Centre Bearing Spacer Kit

Part Number

WA19-526K

Availability

Helps to Reduce Driveline Vibration in Lifted Vehicles
