Suitable For

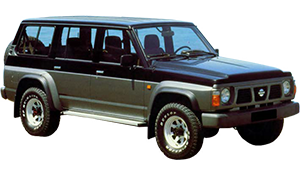

A vehicle image representing the page's contents

Type:

Maverick

Model:

Y60 (1989 to 1994)

Variant:

Wagon

Detail:

SWB & LWB (Australia)

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Suits 3.0L Petrol

Linear Rate
Standard Height

Part Number

C45-092

Availability

Variable Rate
Raised Height (40mm Lift)

Part Number

C45-096V

Availability

Linear Rate
Raised Height (40mm Lift)

Part Number

C45-094

Availability

Linear Rate
Raised Height (50mm Lift)
50-80Kg

Part Number

C45-102

Availability

Linear Rate
Raised Height (75mm Lift)

Part Number

C45-108

Availability

Suits 4.2L Petrol & 2.8L TD

Linear Rate
Standard Height

Part Number

C45-098

Availability

Linear Rate
Raised Height (45mm Lift)
Up to 50Kg

Part Number

C45-102

Availability

Linear Rate
Raised Height (75mm Lift)

Part Number

C45-108

Availability

Suits 4.2L Diesel

Variable Rate
Raised Height (45mm Lift)

Part Number

C45-110V

Availability

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
70-100Kg

Part Number

C45-104

Availability

Linear Rate
Raised Height (75mm Lift)
Heavy Duty
60-100Kg

Part Number

C45-108

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-114

Availability

IFP Monotube Shock (IMS)

Part Number

IMS45-60114

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A114

Availability

Steering Damper

Heavy Duty (Big Bore) - Complete with Fittings

1988 to 08/1989

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD45-834

Availability

08/1989 on

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD45-836

Availability

Adjustable Monotube Heavy Duty - Complete with Fittings & Mounts

Y60 GQ & Y61 GU
Suits Draglinks and Panhard Rods 28-38mm Ø
May Require Existing Mounts To Be Cut Off

Part Number

SS51A811

Availability

Bump Stop

Hydraulic Bump Stop

Hydraulic Bump Stop
Threaded Height Adjustable
66mm Body x 57mm Travel
(2"-4" Lift)

Part Number

HBS66-002

Availability

Hydraulic Bump Stop
Threaded Height Adjustable
66mm Body x 85mm Travel
(4"-6" Lift)

Part Number

HBS66-003

Availability

Hydraulic Bump Stop Mounting

Hydraulic Bump Stop Mounting Kit
(Weld In)
(Excludes Bump Stops)

Part Number

HBS45-007K

Availability

Rubber Bump Stop

Adjustable Soft-Hit Bump Stop
(Suits 0-56mm extension)

Part Number

BS45-528

Availability

Castor Kit

Raising Vehicle Will Effect Castor Angle.
A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0°, ±2.5° or ±3.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Availability

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-522K

Availability

Radius Arm Bush

0 Degree Standard Radius Arm Bush Kit
Arm to Diff
4 x Rubber Bushes

Part Number

RB59-536K

Availability

Arm to Chassis Bush Kit
4 x Rubber Bushes

Part Number

RB45-535K

Availability

Panhard Rod Bush

Does Not Fit OE
Upper/Chassis Bush

Part Number

RB45-6025

Availability

Does Not Fit OE
Lower/Diff Bush

Part Number

RB45-6027

Availability

Draglink

38mm Solid Adjustable

Part Number

SA45-1422

Availability

Gearbox Spacer Kit

Recommended For Reducing Drive Line Vibration On Raised Vehicles

Part Number

TC45-001K

Availability

Coil Spacer

15mm

Part Number

PS45-4010

Availability

30mm

Part Number

PS45-4011

Availability

Rubber Coil Seat

Replacement Upper Rubber Coil Seat

Part Number

RS45-4026

Availability
