Suitable For

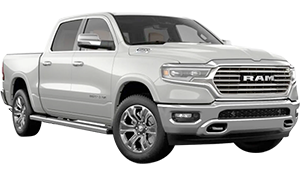

A vehicle image representing the page's contents

Type:

Ram

Model:

1500 (2019 on)

Variant:

DT - 2"-3" Lift (Pin/Eye Rear Shock)

Detail:

4x4, 2"-3" Lift
Pin Top Rear Shock Absorber - Confirm on Australian Converted Models

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Must Fit Upper Control Arms When Fitting Coil Springs

Linear Rate
Raised Height (60mm Lift)
0-40Kg

Part Number

C16-046

Availability

Linear Rate
Raised Height (60mm Lift)
Heavy Duty
50-100Kg

Part Number

C16-048

Availability

Shock Absorber

Must Fit Upper Control Arms When Fitting Shock Absorbers

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 212mm / 8.3"

Part Number

IMS16-60302

Availability

X - Centre of Eye to Spring Seat

NOTE: For 3" Lift - Front
Set X = 225mm / 8.8"

Monotube Remote Reservoir
(3-Way Adjustable)
Assembled Coil Over
Includes C92-3014650,
14" x 650lbs/in Coil Spring
Suits 2"-3" Lift, 0-100kg
Pre-load -
2” – 0kg = 87mm
2” – 70-100kg = 94mm
3” – 0kg = 100mm
3” – 70-100kg = 107mm

Part Number

MRA16-A304

Availability

X - Centre of Cap Bolt to Spring Seat

Control Arm

Upper Control Arm

(Pair) 3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA16-008K

Availability

Rear

Coil Spring

Variable Rate
Raised Height (50mm Lift)
Heavy Duty
Up to 50Kg Constant Load

Part Number

C16-051V

Availability

Variable Rate
Raised Height (50mm Lift)
150-250Kg Constant Load

Part Number

C16-053V

Availability

Variable Rate
Raised Height (50mm Lift)
400-500Kg Constant Load

Part Number

C16-059V

Availability

Shock Absorber

IFP Monotube Shock (IMS)

Part Number

IMS16-60303

Availability

Must Confirm Pin Top Shock Absorber on Australian RHD Converted Models.
If Eye Top, See Page DOD-14
