High Flow
Air Compressor

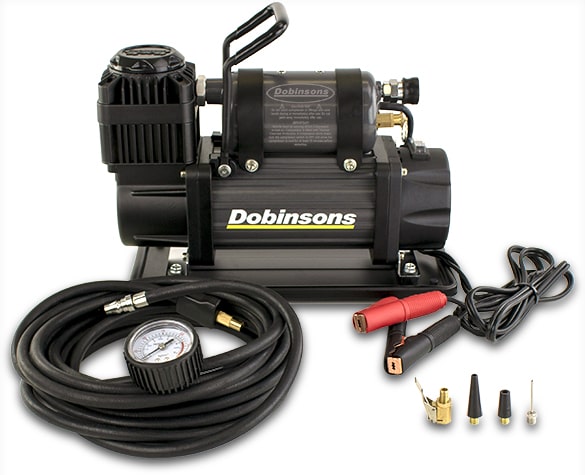

Dobinsons latest high output Air Compressor has been designed and tested in Australia to combine high volume air-flow for quick tyre inflation as well an integrated air tank, pressure cut-off switch and auxiliary ports for a variety of different applications.

Part Number:
  • AC80-3846
Features:
  • 170L/ minute Air Flow
  • Integrated Air Tank
  • 2 x 1/8” NPT Auxiliary fittings
  • Carry Bag
  • 6.5 m Rubber Hose
  • Pressure Cut Off Switch
  • Safety Release Valve
  • Removable Base for Permanent Mounting
  • Quick Release Tyre Chuck
Specifications
  • Nozzle Adapters
  • Pressure Gauge & Fuse
  • Voltage: 12 Volts DC
  • Motor Rating: 700 Watts
  • Max Current Draw: 60 Amps
  • Air Flow: 170L per minute
  • Maximum Pressure: 125 PSI
  • Cylinder Diameter: 60mm Full Metal
  • Duty Cycle: 40min at 40 psi at 20°C
  • Overload: 90 Amp
  • Air Hose: Rubber 6.5 metre
  • Air Tank Size: 0.19 Litres Approx
  • Auxiliary Tank Fittings: 1/8” NPT
  • Pressure Switch Cut-Off: 125 Psi
  • Pressure Switch Cut-In: 90 Psi
  • Dimensions mm (L x H x W): 340 x 240 x 15
